RKS-FHDI-CX216
Introducing the RKS-FHDI Rackmount KVM Switch Series
The RKS-FHDI Rackmount KVM Switch Series is designed to provide seamless management and control for up to 32 servers, with the ability to scale up to 1024 servers via 2-level cascading. Ideal for small server room to mid-sized datacenters environments, the switch series supports HD video resolutions up to 1920x1200@60Hz (Analog/VGA) and 1920x1080p@60Hz (Digital/DVI), ensuring sharp, clear visuals for all connected systems. With multi-format video support, including DVI-I (DVI & VGA), HDMI, and DisplayPort, users can connect a wide variety of computers with ease, all over standard CAT5e/6/6a cabling.
The single or dual-user functionality allows control of up to 8, 16, or 32 servers, with intuitive access methods such as USB keyboard hotkeys and the On-Screen Display (OSD) menu. The front panel LEDs provide at-a-glance server status, while each server can be labelled for quick identification and selection. Password security ensures only authorized users can access sensitive computers, providing data protection for enterprise environments.
Designed for flexibility, the switch allows server connections to be extended up to 45 meters (148 feet) from the KVM switch to the computer access dongle, ensuring robust performance even in large setups. Additionally, the system supports audio output through a 3.5mm stereo jack, enhancing the multimedia experience. The 19” rack-mountable unit features a robust metal enclosure, and its firmware upgradeability ensures it remains adaptable as your needs evolve. Whether you are managing a small setup or scaling to large server environments, the KVM Switch Series is the perfect solution for seamless, secure, and efficient server management.
About the RKS-FHDI-CX216 Model
The RKS-FHDI-CX216 model is ideal for small setup and SME. This model allows dual-user operation over up to 16 servers/computers.

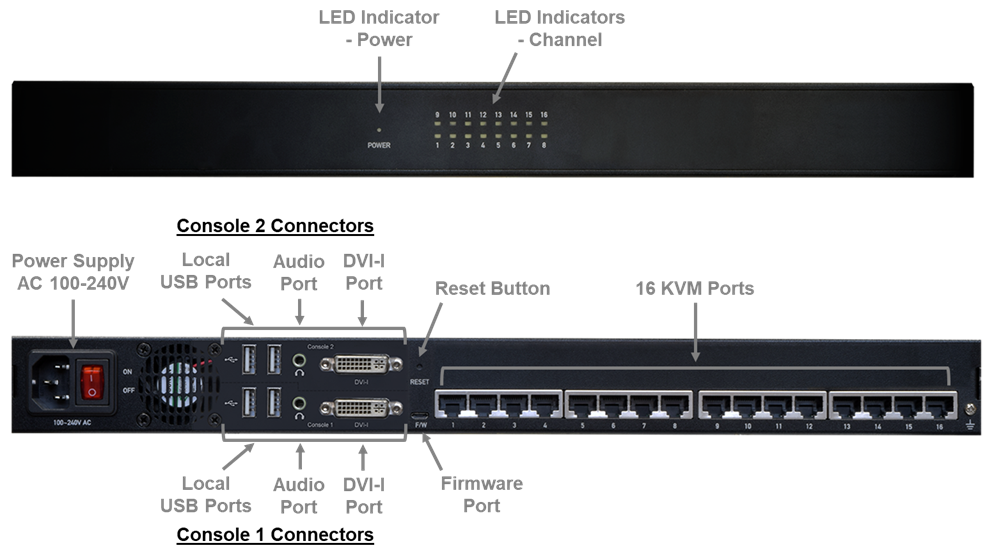

· Enables two DVI-I Console Users to control up to 16 Ports of Servers/PCs connected over CATx cable with Computer Access Dongles (CADs).
· Supports HD video resolution up to 1920x1200@60Hz (analog/VGA) and 1920x1080@60Hz (digital/DVI) via standard CAT 5e/6 cabling.
· Supports multiple video interfaces, including analog VGA, DVI-I (DVI & VGA), HDMI, and DisplayPort.
· Dual-user control for 16 servers (Model RKS-FHDI-CX216).
· Supports switch cascading to 2 levels to expand port capacity.
· Console USB HID support for keyboard and mouse control.
· OSD (On-Screen Display) interface and hotkeys for quick and easy access to connected computers, and control and management.

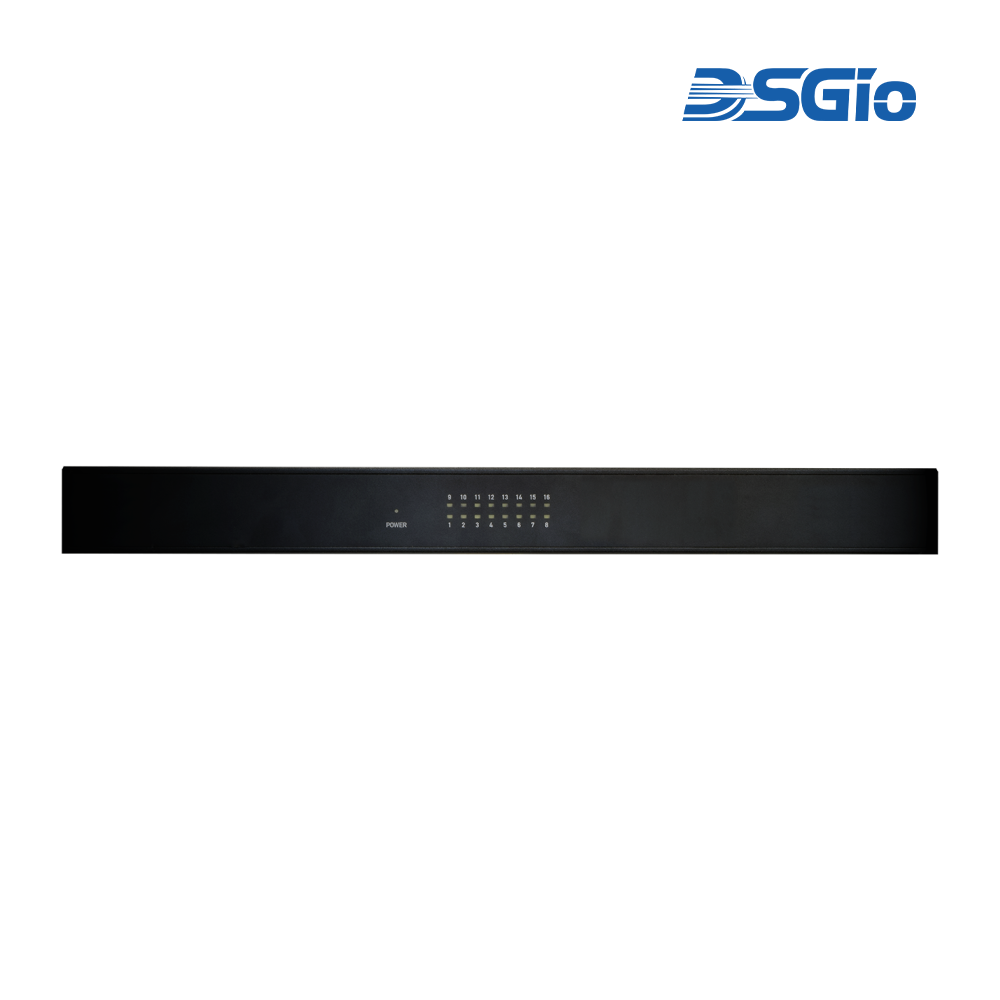

· Front Panel LEDs for instant monitoring of server status and selected channels.
· Servers/computers can be labelled for quick identification and selection.
· Password security ensures authorized access to servers/computers, offering data protection.
· Supports audio output via stereo 3.5mm jack. Audio transmission is only available with the use of HDMI or VGA CADs for the computers.
· Auto-Scan feature enabled for automatic server scanning.
· Firmware upgradeable for future enhancements.
· LED indicators monitor the status of each channel.
· Compliant with various video computer access dongles (CADs), including VGA/DVI/HDMI/DP, over CAT5e/6 cable.

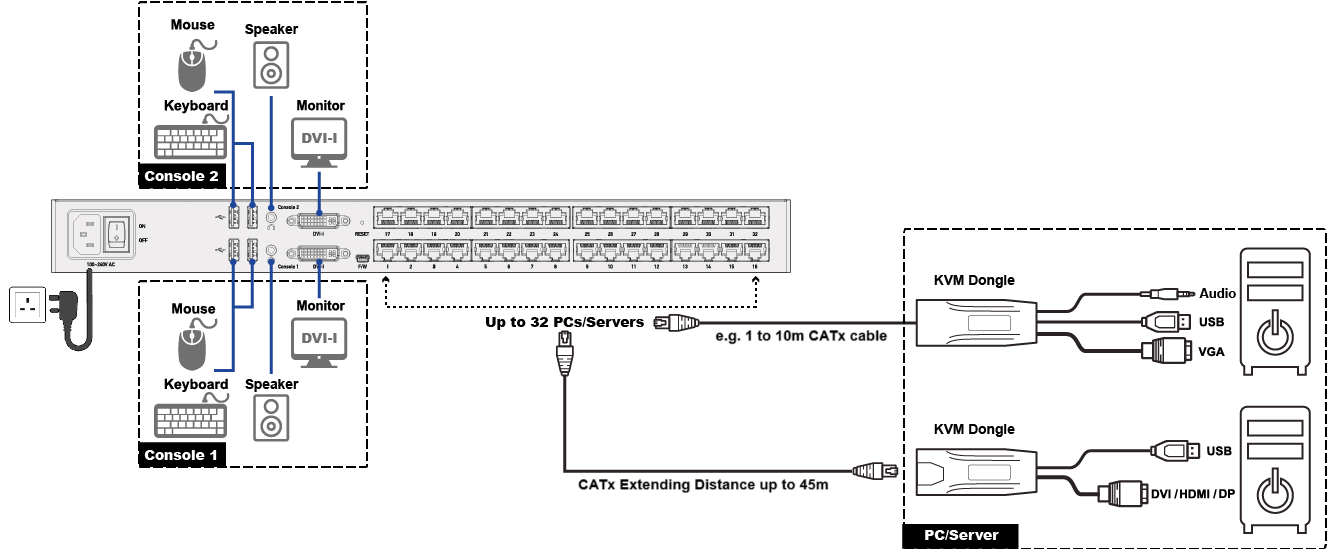

· Can extend connections up to 45 meters (148 feet) from KVM switch to computer access dongle over CAT5e/6 cable.

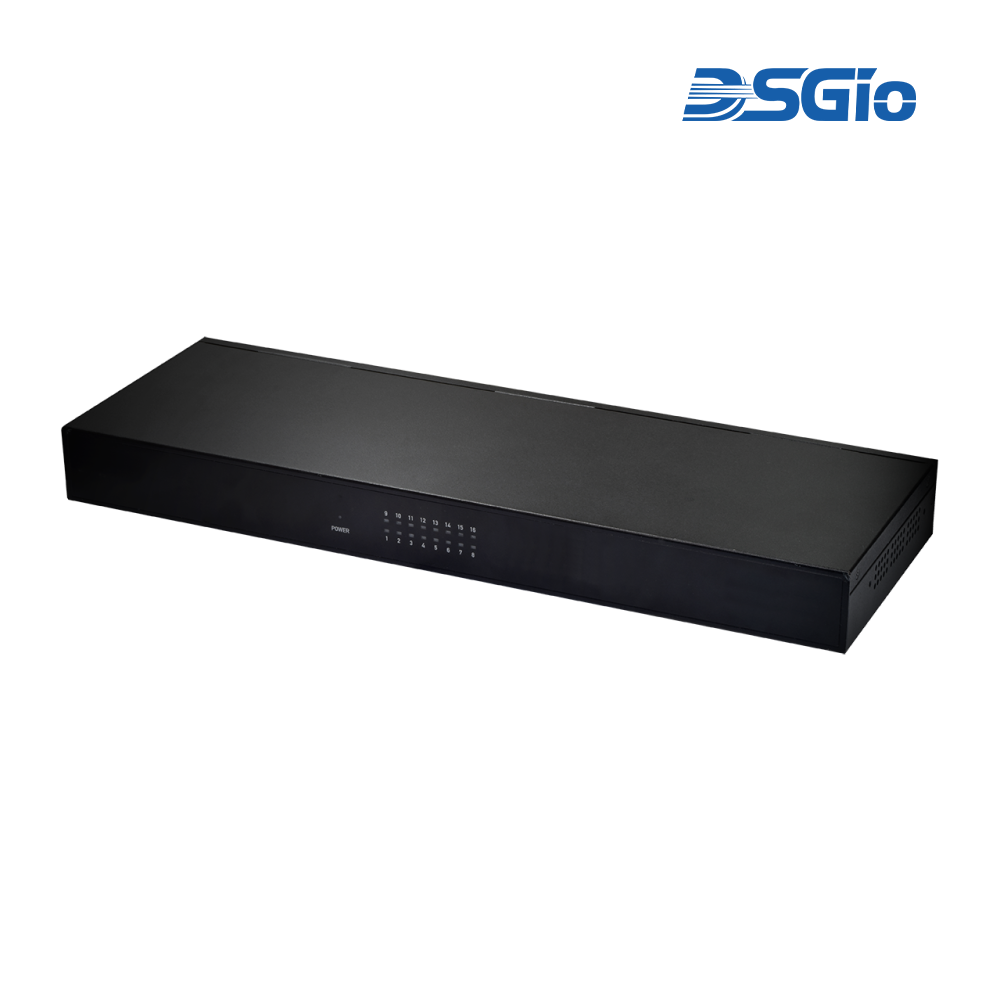

· Robust metal enclosure ensures durability.
· 19” rack-mountable design for easy integration into server racks.
