UDC-AB20-XXXM
DSGio’s UDC-AB20-XXXM USB 2.0 Type A Male to Type B Male cable offers a reliable and efficient solution for connecting computers and peripheral devices requiring USB Type A to Type B port connections. Available in three lengths (1m, 2m, and 3m), this cable supports data transfer speeds of up to 480 Mbps and is fully backward compatible with USB 1.1 devices.
Constructed with a high-quality, durable black PVC jacket and featuring nickel-plated connectors, this cable is designed to withstand repeated use while maintaining a secure connection. The shielded, AL-Mylar foil wrapped cable ensures maximum data integrity, with no data loss, and protects against electromagnetic and radio frequency interference (EMI/RFI).
The cable is UL listed and RoHS compliant, making it a reliable and eco-friendly choice for your data transfer needs. Its molded strain reliefs provide added durability, ensuring long-lasting performance and protection from wear and tear.

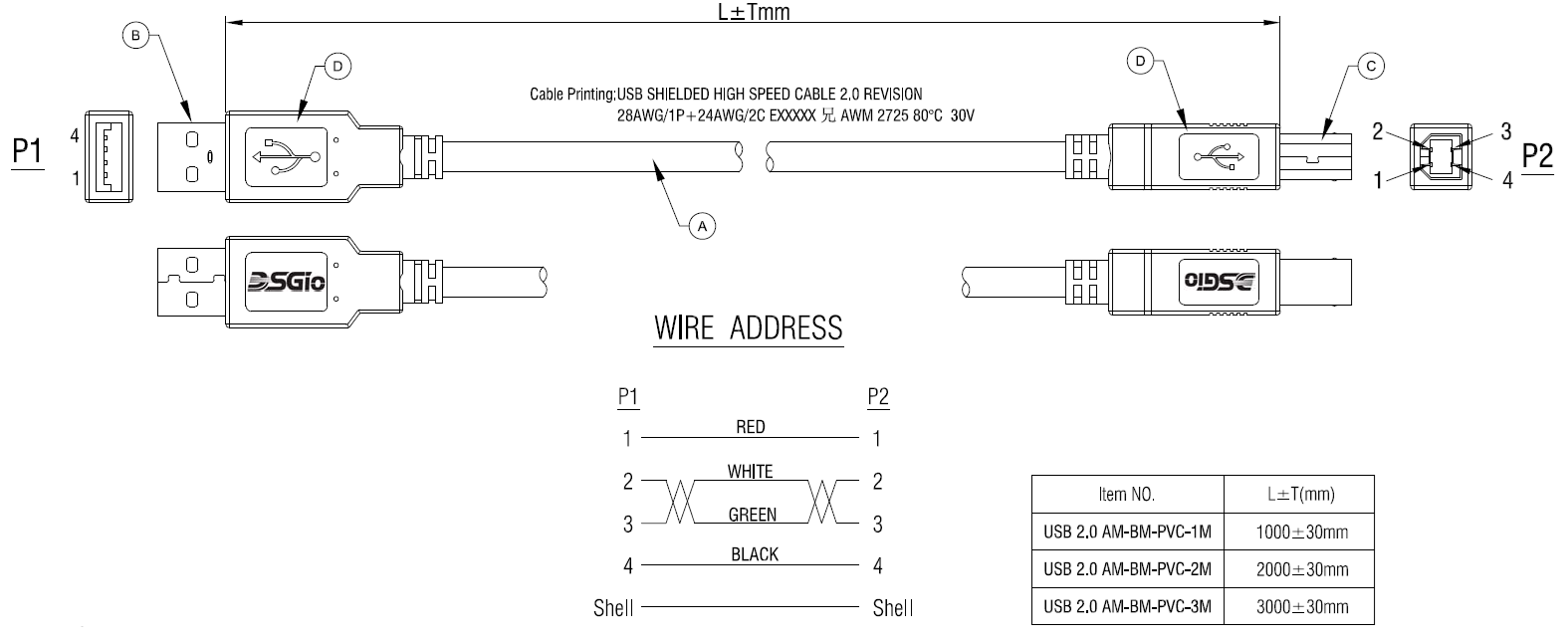

Cable Construction

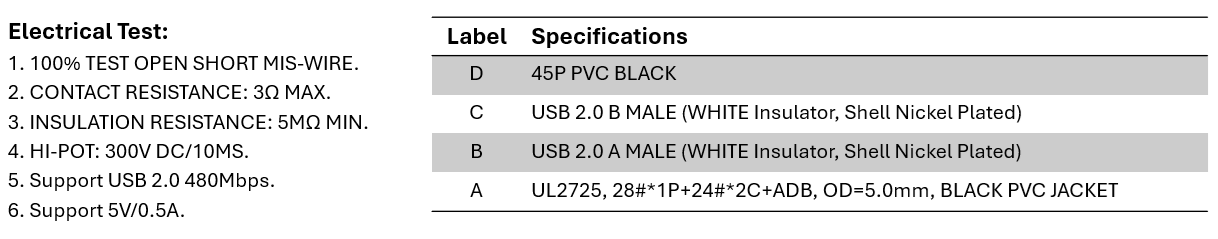

· Cable Specifications: UL2725*28AWG*1P+24AWG*2C+ADB, OD=5.0mm, Black PVC Jacket
· USB Version: USB 2.0 (480Mbps), backward compatible with USB 1.1
· Connector USB: (1) USB 2.0 Type A Male (4 pin, Insulator, Shell Nickel Plated)
(2) USB 2.0 Type B Male (4 pin, Insulator, Shell Nickel Plated)
· Cable Jacket Material: Black PVC - Polyvinyl Chloride
· Cable Shield Material: Aluminium-Mylar Foil with Braid
· Connector End: Black 45P PVC Mold
· Outer Diameter: 5.0mm
· Wire Gauge: 24/28 AWG
· Cable Length: (1, 2 or 3) m ± 30mm
· Cable Construction: (1) 28 AWG twisted pair (Data - green, white)
(2) 24 AWG conductors (Power - red and black)
· Operating Temperature: 0 ~ 60°C
· Storage Temperature: -20 ~ 75°C
· Operating Humidity: 10% ~ 85% non-condensing
· Standards: UL2725 USB Cable, RoHS Compliant
