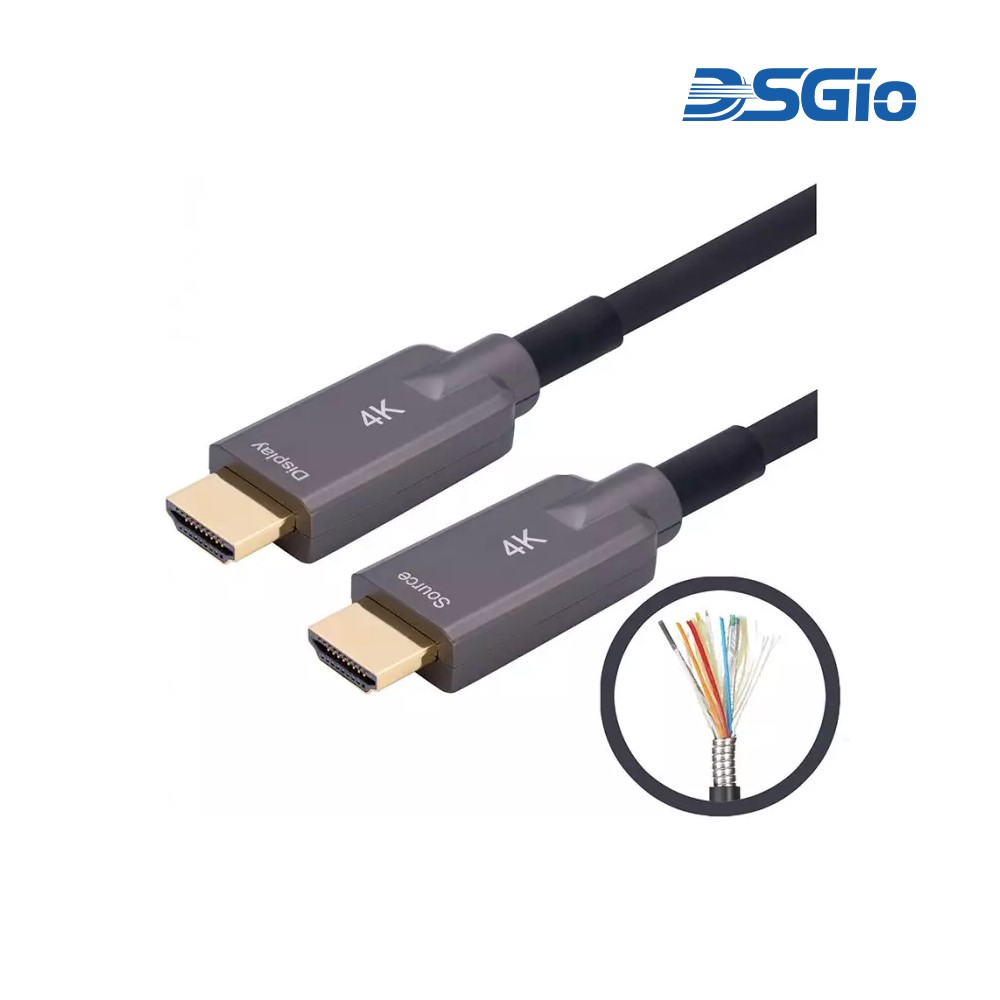

Armored HDMI 2.0 Active Optical Cable

Armored HDMI 2.0 Type A (Male) to Type A (Male) AOC, 4K@60Hz, 18Gbps, TPU

Our Armored HDMI 2.0 Active Optical Cable combines durability with high-speed performance for seamless connectivity in challenging environments. With support for 4K at 60Hz and HDR, it spans up to 100 meters without signal degradation, ensuring reliable transmission in industrial and professional settings.



  • Category: Armored Active Optical Cables
  • SKU: VDC-HAF20-XXXM
  • Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m

Overview

Product Features

Our Armored HDMI 2.0 Active Optical Cable (AOC) provides a robust and efficient solution for long-distance HDMI connections. With support for an impressive data rate of 6 Gbps per channel, totalling 18 Gbps, this cable guarantees high-speed performance. Its 200CU stainless steel armored construction ensures exceptional durability and protection against physical damage, while the lightweight and flexible design, featuring an ultra-small long-term bending radius of 45mm, allows for easy installation. The advanced optical engine embedded within the cable maintains full HDMI signal integrity over distances up to 100 meters. Additionally, it is a plug-and-play device that requires no external power, making it a convenient and reliable choice for any high-definition audio and video needs.



Features

·       Compatible with HDMI 2.0 Standard: Ensures compatibility with the latest HDMI standard for high-definition audio and video transmission.

·       Supports HDCP 1.4 and 2.2: Allows secure transmission of encrypted content, essential for protected media playback.

·       Supports Computer Resolutions: Capable of handling computer resolutions up to 1080P and 4K60 Hz (4:4:4), delivering sharp and clear digital images.

·       Hybrid Optical Cable: Combines fiber optics and copper wires to leverage the benefits of both technologies, ensuring reliable signal transmission.

·       Up to 100m Maximum Length: Supports long-distance transmission up to 100 meters, with custom lengths available for specific installations.

·       Low Power Consumption: Energy-efficient design with a maximum power consumption of 250mW, minimizing operational costs.

·       Plug and Play: Easy installation with plug-and-play functionality, requiring no additional power source.

·       Self-Detecting Function for EDID Information: Automatically detects and adjusts to connected devices' display capabilities, ensuring optimal performance.

·       No Loss of Signal: Delivers crystal-clear digital images instantly, without signal degradation.

·       Crush Resistance: Designed for durability, with a crush resistance of up to 100kg long-term and 200kg short-term, suitable for rigorous environments.

·       Compatible with HDMI 2.0 standard: EDID, CEC, HDCP2.2, HDR, HEC, ARC, etc

·       Support up to 4K60Hz 4:4:4 resolution

·       Data transfer rates up to 18Gbps

·       Delivers dual video streams to compatible displays

·       21:9 cinema aspect ratio and BT.2020 colorimetry

·       Compliant with Category 2 specifications (600MHz clock frequency)

·       Up to 32 audio channels with a 1536KHz sampling rate

·       Supports up to eight PCM channels, DTS-HD Master and Dolby Digital True HD surround sound audio

·       No loss of signal – delivering crystal clear digital images instantly

·       Cable OD: 5.8mm, 4 fiber + 7 copper wire

·       Up to 100m Maximum Length (Custom Length Available)

·       Low Power Consumption: 250mW (max)

·       OM3 fiber technology greatly reduces EMI/RFI emissions

·       Triple-shielding further protects against interference for optimal signal quality

·       Extended temperature range from -40° to 70°C for installations in harsh environments or manufacturing floors

·       TPU Jacket is soft and strengthened the flexibility

·       Has Source & Display clearly printed on the connector for easy identification

·       Has high pulling strength and compression load

·       Plug and Play, no external power required

·       200CU stainless steel construction

·       Crush Resistance: Long term 100kg ; Short term 200kg
