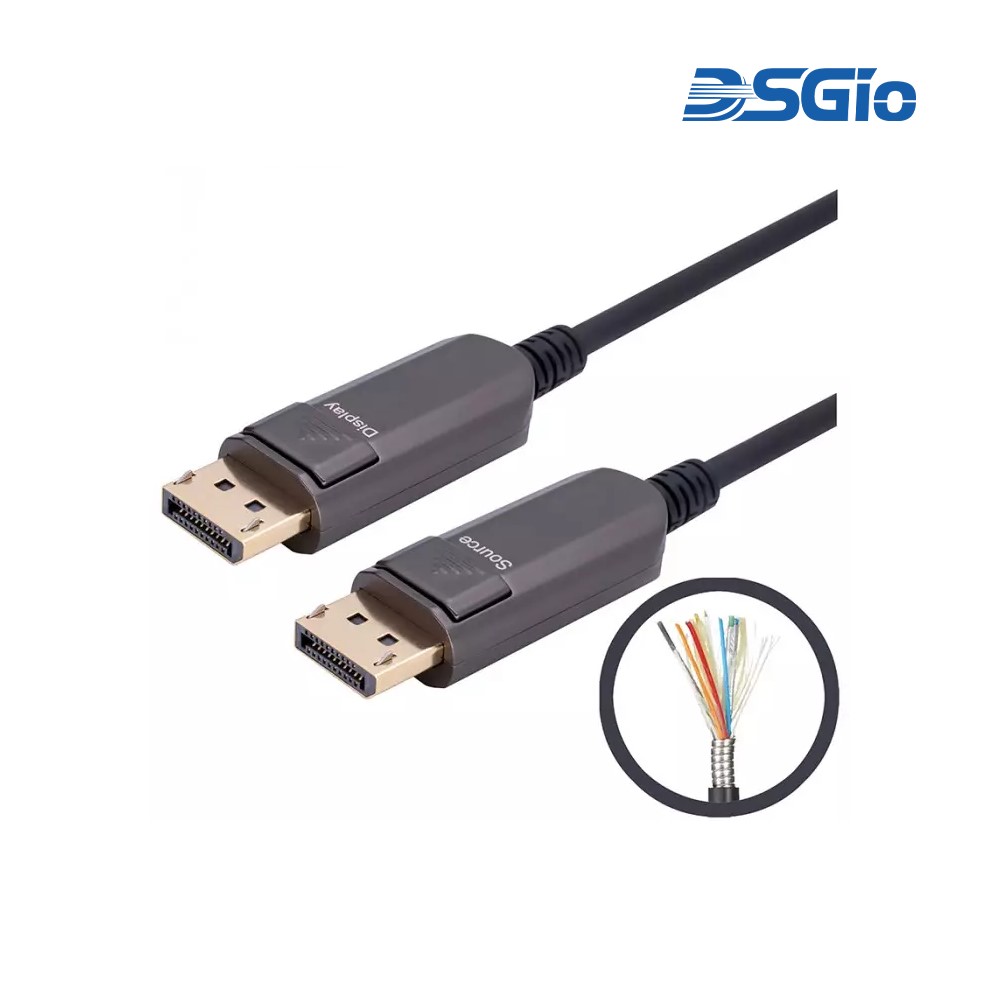

Armored DP 1.4 Active Optical Cable

Armored DP 1.4 to DP 1.4 AOC, 8K, 32.4Gbps, TPU

Our Armored DisplayPort 1.4 Active Optical Cable combines rugged construction with cutting-edge display technology. Supporting resolutions up to 8K and HDR, it ensures superior signal integrity over distances up to 100 meters. Perfect for industrial and professional environments requiring robust, high-bandwidth connectivity, it delivers reliable performance and durability in challenging conditions.



  • Category: Armored Active Optical Cables
  • SKU: VDC-DAF14-XXXM
  • Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m
Download to PDF

Overview

Product Features

Discover the advantages of Armored DisplayPort 1.4 Active Optical Cables (AOC), a cutting-edge solution in audio/video transmission technology. These cables harness optical fiber for HD signal transmission, offering extended reach capabilities beyond 100m and exceptional signal stability without electromagnetic interference (EMI).



Features

·        High Bandwidth: Supports 8.1 Gbps per channel and a total bandwidth of 32.4 Gbps, meeting DP1.4 Standard.

·        8K Support: Enables pristine 8K resolution at 60Hz, with compatibility for HBR3 and HDCP 1.4 / 2.2.

·        Durable Construction: Built with a robust 200CU stainless steel armor for superior crush resistance (100kg long-term, 200kg short-term).

·        Hybrid Fiber and Copper Design: Provides a lightweight, slim profile suitable for various applications.

·        Low RFI / EMI Profile: Ideal for sensitive environments requiring minimal electromagnetic interference.

Armored DisplayPort 1.4 AOCs are ideal for applications ranging from computer connectivity to outdoor displays and security systems, delivering reliable audio/video signal transmission in diverse settings.

·       Compliance with 7680 x 4320 (8K)@ 60 Hz 4:2:0 resolutions up to 100 meters

·       Data transfer rates up to 32.4 Gbps

·       Compatible with DP 1.4 standard: EDID, HBR3, HDCP 2.2, HDR (High Dynamic Range), HEC, etc

·       21:9 cinema aspect ratio and BT.2020 colorimetry

·       Up to 32 audio channels with a 1536KHz sampling rate

·       Delivers dual video streams to compatible displays

·       Zinc-alloy DP connectors for enhanced durability and performance

·       Cable OD: 5.8mm, 4 fiber + 8 copper wire

·       Triple-shielding further protects against interference for optimal signal quality

·       OM3 fiber technology greatly reduces EMI/RFI emissions

·       Hybrid construction utilizes both fiber and copper to supply power

·       Extended temperature range from -40° to 70°C for installations in harsh environments or manufacturing floors

·       TPU Jacket is soft and strengthened the flexibility

·       Has Source & Display clearly printed on the connector for easy identification

·       Has high pulling strength and compression load

·       Plug and Play, no external power required

·       200CU stainless steel construction

·       Crush Resistance: Long term 100kg ; Short term 200kg
