IPKX-A430-SH20KF

4K30 Single Head HDMI IP KVM Extender over Fiber With Local Out, Audio, RS-232, USB 2.0, SM, 20Km

The IP KVM extender provides high-definition 4K HDMI video quality with resolutions up to 3840 x 2160 at 30Hz and Chroma Subsampling 4:4:4, ensuring sharp, vibrant displays. It supports video, USB, RS-232, and audio extension up to 20 Km (66,000 ft) over single-mode fiber cable, ideal for long-distance applications. With transparent USB 2.0 extension featuring four ports, it accommodates USB storage, HID devices like keyboards, mice, touch screens, printers, and barcode readers. The extender also includes bidirectional analog audio line-in/line-out and RS-232 serial extensions for versatile communication. Additionally, the transmitter unit offers local HDMI video loopback for convenient monitoring.

Contact Us Download to PDF

Overview

Product Features

Connection Diagram

Downloads

The IPKX-A430-SH20KF Single Head HDMI IP KVM Extender over Fiber is designed for seamless remote access and control of a computer, server, or other IT devices. Through this extender, users can connect a local HDMI monitor, USB keyboard, mouse, speakers, microphone, and other USB devices, making it highly versatile for workstations that require remote operation. The extender supports an impressive 4K video resolution of up to 3840 x 2160 at 30Hz with 4:4:4 chroma subsampling, ensuring high-quality visuals for demanding applications.

The IPKX-A430-SH20KF operates as a plug-and-play solution with no need for software configuration or driver installation, providing a straightforward point-to-point setup. Its extension capabilities include video, USB, RS-232, and audio transmission over distances of up to 20 Km (65,600 ft) using single-mode fiber cabling. For enhanced flexibility, the unit includes a transparent USB 2.0 extension with four ports, enabling connections to USB storage devices, touch screens, printers, barcode readers, keyboards, and mice. This bidirectional USB support extends the functionality of remote systems, making it easy to interact with a variety of peripherals.

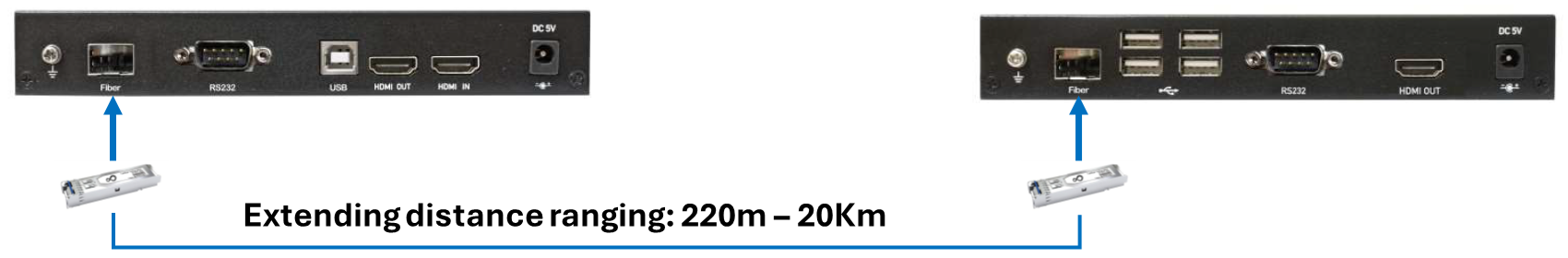

IPKX-A430-SH20KF(图1)

Additional features include bidirectional analog audio line-in and line-out for clear audio transmission, as well as RS-232 serial support for reliable serial communication. For convenient local monitoring, the transmitter (TX) unit is equipped with an HDMI loopback port, allowing users to view the video output from the remote device in real-time. This IP KVM extender over fiber delivers a versatile, high-performance solution for remote device operation, meeting the needs of professional and commercial environments alike.

· Supports HDMI input/output video quality up to 3840 x 2160 @ 30Hz and 1920 x 1200 @ 60Hz.

· Video, USB, RS232, and audio extension distance up to 20 Km (65,600 ft) over fiber optic using single-mode Gigabit fiber SFP transceiver module or shorter distances with multi-mode fiber and transceiver module. Maximum USB signalling rate is 12Mbps.

· Transparent USB 2.0/1.1 extension with 4 USB ports, compatible with devices such as storage drives, touch screens, printers, barcode readers, keyboards and mice.

· Either bidirectional analog audio LINE-IN/LINE-OUT extension, or digital HDMI audio extension operating at the same time.

· Bidirectional RS232 control communication at a fixed baud rate of 115,200 bps.

· Local 4K HDMI port loopback on the transmitter (TX) unit for monitoring.

· Supports EDID Pass-through from remote display at the Receiver end.

· HDMI 1.4 compliant for high-definition video and audio transmission.

Connection Diagram
