IPKX-A430-SH100

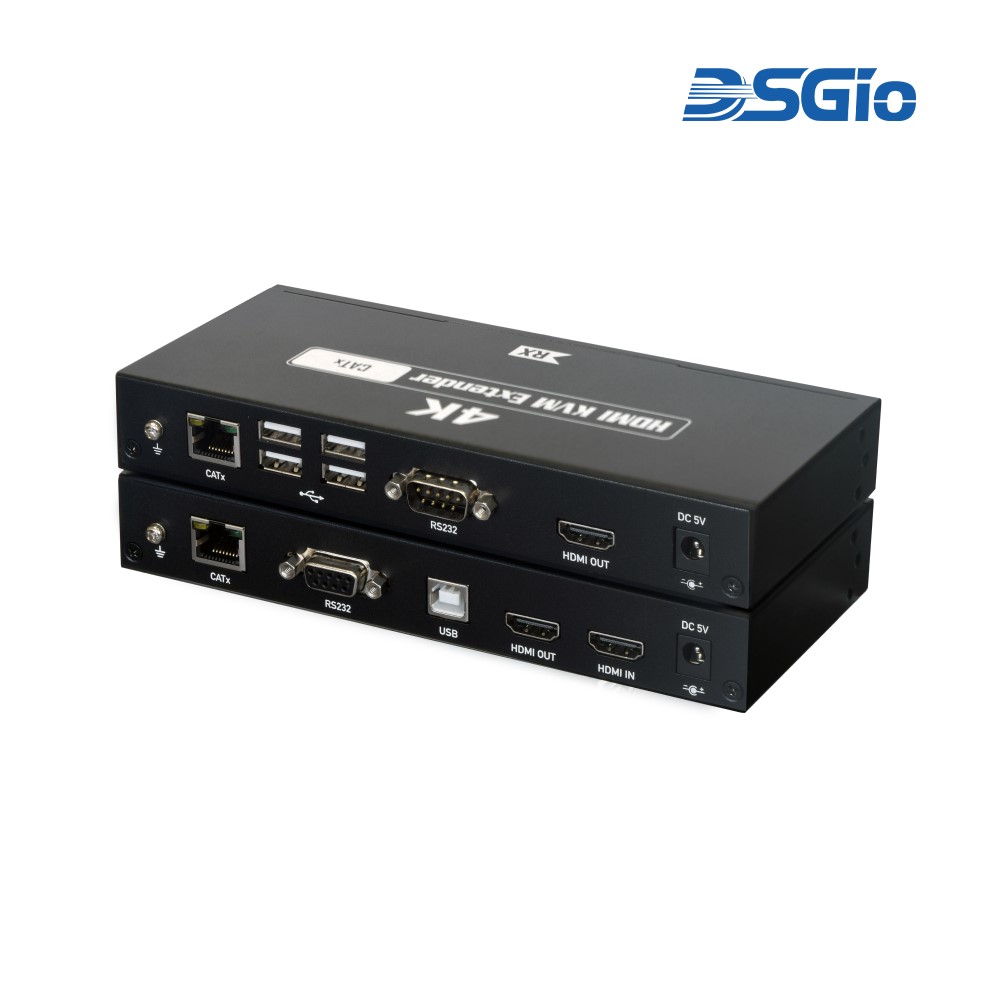

The IPKX-A430-SH100 Single Head HDMI IP KVM Extender is designed for seamless remote access and control of a computer, server, or other IT devices. Through this extender, users can connect a local HDMI monitor, USB keyboard, mouse, speakers, microphone, and other USB devices, making it highly versatile for workstations that require remote operation. The extender supports an impressive 4K video resolution of up to 3840 x 2160 at 30Hz with 4:4:4 chroma subsampling, ensuring high-quality visuals for demanding applications.
The IPKX-A430-SH100 operates as a plug-and-play solution with no need for software configuration or driver installation, providing a straightforward point-to-point setup. Its extension capabilities include video, USB, RS-232, and audio transmission over distances of up to 330 feet (100 meters) through CAT5e/6 cabling, with the option to extend even further by incorporating a network switch hub. For enhanced flexibility, the unit includes a transparent USB 2.0 extension with four ports, enabling connections to USB storage devices, touch screens, printers, barcode readers, keyboards, and mice. This bidirectional USB support extends the functionality of remote systems, making it easy to interact with a variety of peripherals.
Additional features include bidirectional analog audio line-in and line-out for clear audio transmission, as well as RS-232 serial support for reliable serial communication. For convenient local monitoring, the transmitter (TX) unit is equipped with an HDMI loopback port, allowing users to view the video output from the remote device in real-time. This IP KVM extender delivers a versatile, high-performance solution for remote device operation, meeting the needs of professional and commercial environments alike.
· Supports HDMI input/output video quality up to 3840 x 2160 @ 30Hz and 1920 x 1200 @ 60Hz.
· Local HDMI loopback on the transmitter (TX) unit for monitoring.
· Video / USB / RS-232 / audio extension distance up to 100 meters (330 feet) using single CAT5e/6/6a Ethernet cable.

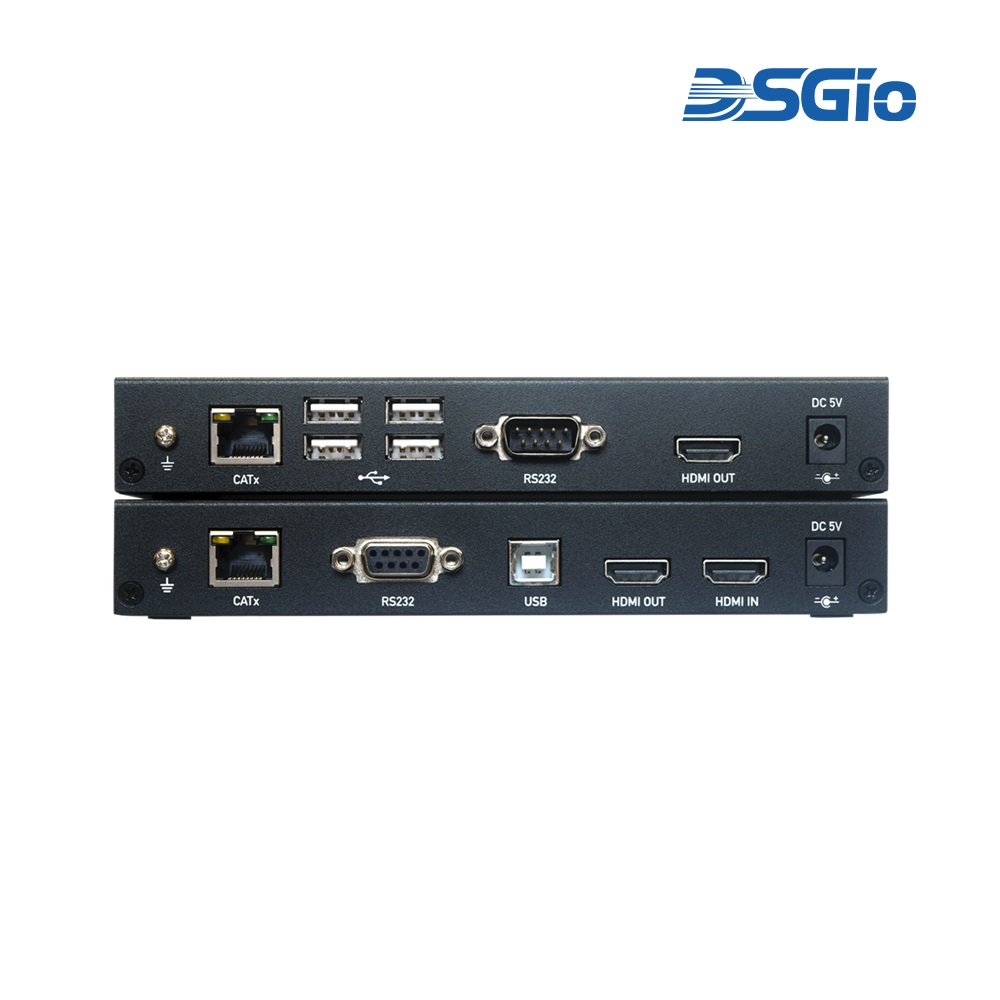

· One RJ-45 Port for extension over CATx
· Transparent USB extension supporting USB 2.0/1.1 with 4 ports for compatibility with various devices such as storage drives, touch screens, printers, keyboards, mice, etc. Maximum USB signalling rate is 12Mbps.
· Supports 2-way analog audio extension.
· Supports bidirectional Serial RS-232 extension at a fixed baud rate of 115,200bps.

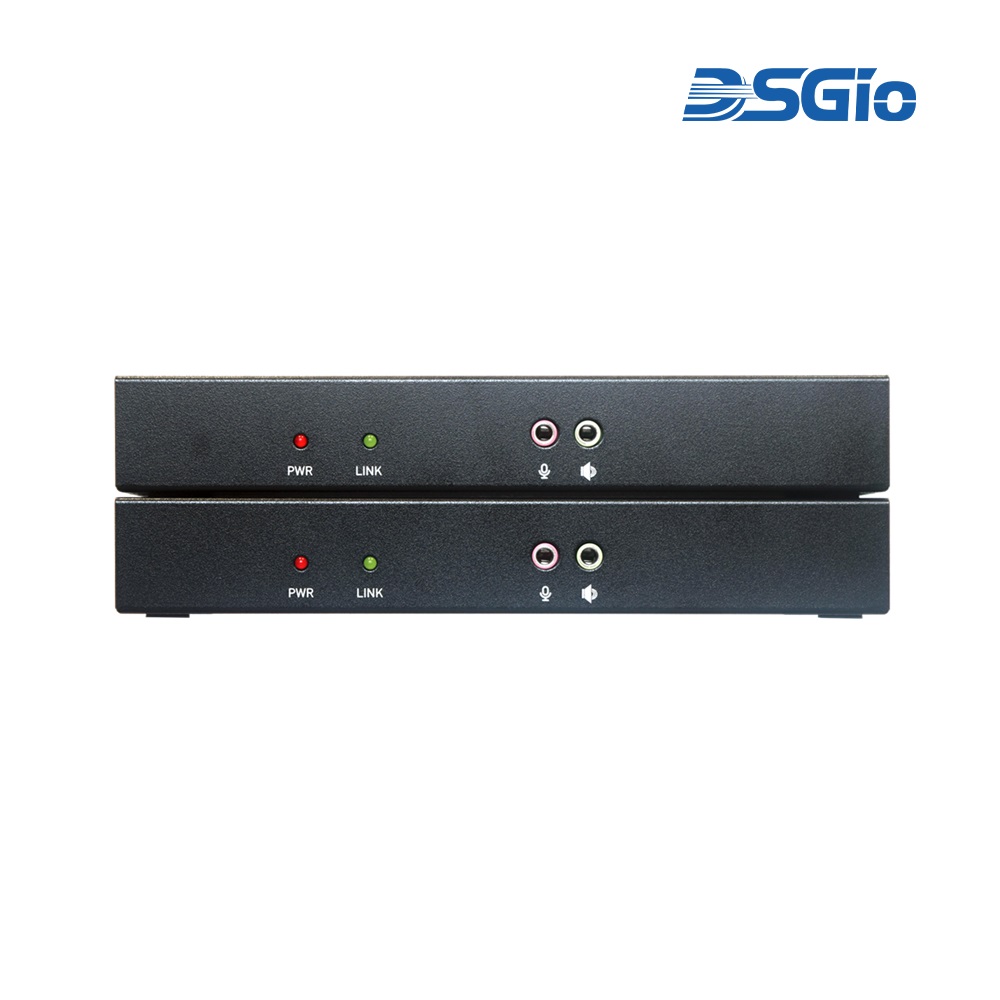

· LED indicators show status for respective power and link.
· Supports EDID Pass-through from remote display at the Receiver end.
· Compliant with HDMI 1.4.

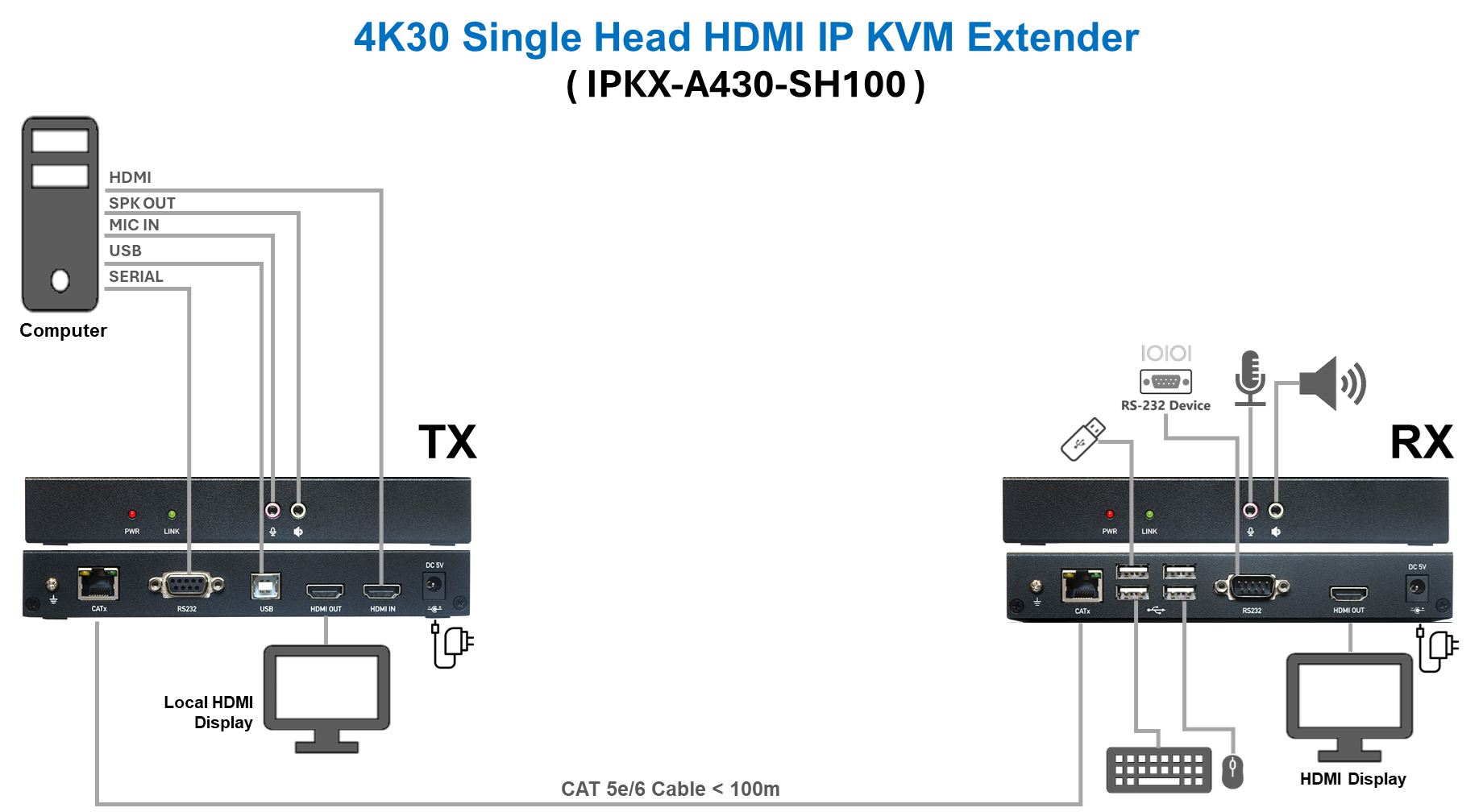

Connection Diagram
