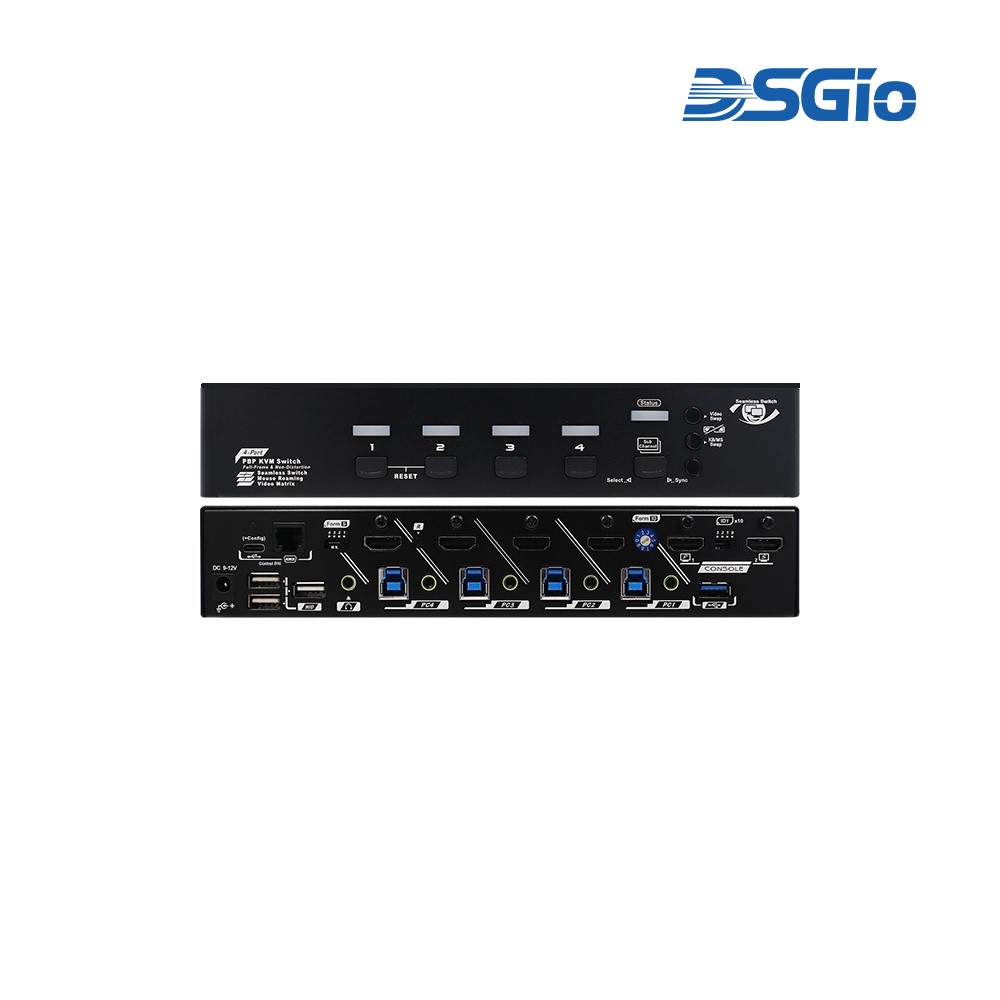

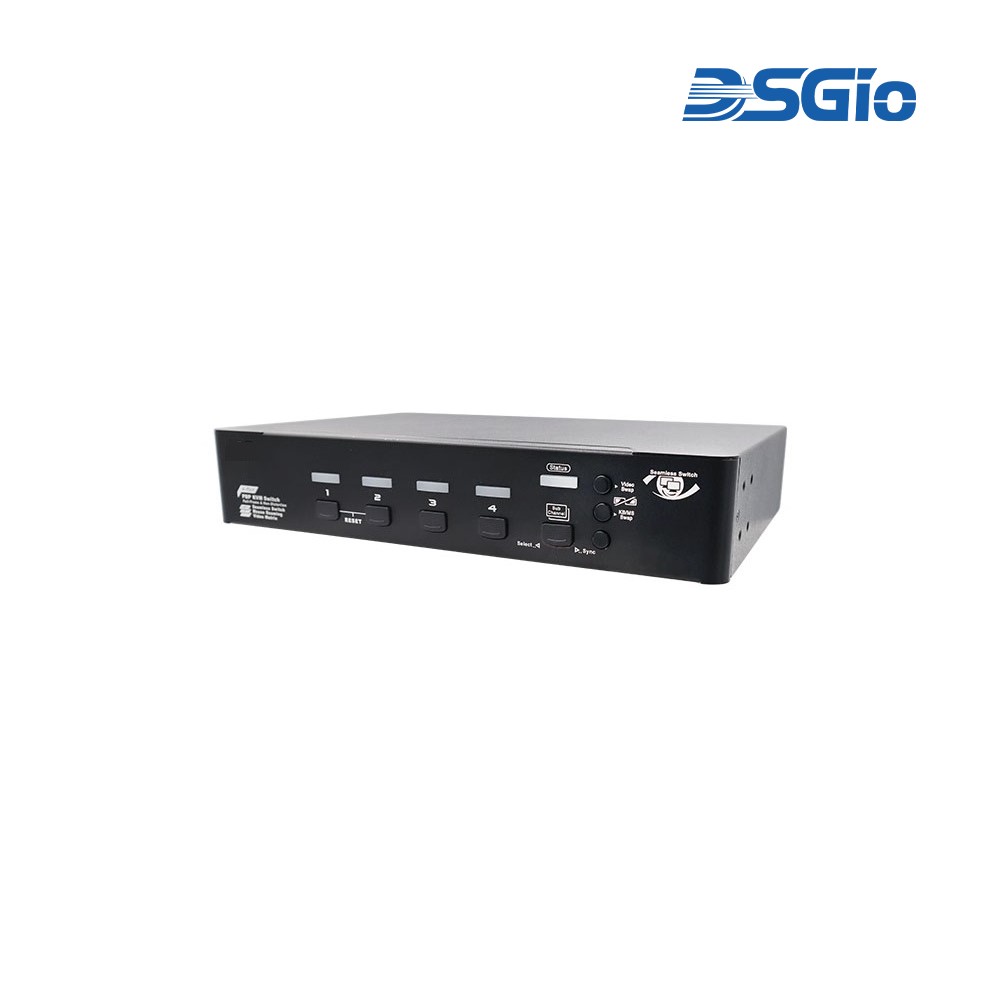

KMX-4KH42-U30R, KVM Matrix Switch
Product Overview The Dual-Monitor 4-port HDMI 2.0 KVM Matrix Switch allows you to easily control 4 HDMI computers with one set of USB keyboard and mouse and simultaneously monitor any two out of the four PC screens, enhancing productivity. Users can switch between 4 PCs using the KVM's hotkey and push buttons or remotely access the KVM via serial control function. USB and Audio The 4-port HDMI Matrix KVM supports not only USB HID keyboard and mouse operation but also USB 3.2 Gen 1 peripheral sharing without requiring any software or driver installation. It is compatible with Windows, Mac, Linux, and Chrome OS. A unique tracking system enables the Audio/USB device to be operated independently, which is useful if you want to listen to music or transfer file data from one particular computer while operating another PC. Stable EDID Transmission The Switch features unique EDID configuration technology that ensures unified and continuous video streaming, optimizing video output and preventing issues like video flickering or black screens when switching KVM host ports. |  |
Mouse Roaming
The innovative Mouse Roaming function transforms computer switching from a task of selecting PCs through complex hotkeys into an intuitive and seamless experience. With the Mouse Roaming function, users can move the cursor across the screen border to switch among computers, offering a smooth and enjoyable user experience in computer control and management.
 |
Serial Control
The Switch supports various control methods, including front-panel buttons, keyboard, mouse, or serial commands. It includes a built-in RJ-11/USB-C port (DB9 to RJ11/Virtual COM Port) for easy and convenient serial connection. The ability to switch via serial command on the HDMI KVM Matrix Switch is designed for industrial control and communication purposes, enhancing KVM switch functionality and serial device management.
 |
Full-Frame PBP (a PbP Monitor is required)
The Switch unique Full-Frame PBP function allows video sources to be displayed on a PBP (Picture by Picture) monitor in full-screen mode, utilizing the entire monitor space. This feature enables two desktop screens to be evenly and entirely displayed on the PBP monitor without distortion or black borders, ensuring a seamless viewing experience.
 |
· Allows 4 computers to share 1 set of KVM Console
· Seamless switch enables Zero-Latency Switching for optimal productivity
· Supports most popular resolutions via HDMI 2.0, up to 4K@60Hz (4:4:4), & aspect ratios of 16:9 / 21:9 / 32:9
· 4x2 Video Matrix (MbM Modes) allows free routing of 4 PCs to 2 video outputs
· Unique Full-Frame PbP (PbP Modes) ensures maximized operating area with PbP-ready monitors
· HDCP 2.2 & 1.4 compliance ensures uninterrupted video playback
· EDID Management ensures proper resolutions (Follows Output 1 Monitor)
· 3 flexible switching control methods:
1. Front Push Buttons
2. Hotkey Control
3. Mouse Roaming
· USB 3.2 Gen 1 supports most devices up to 5Gbps
· Plug-and-Play without software or driver requirements
· Serial control facilitates industrial control
· Supports Windows, Mac, Linux, and Chrome OS
· Independent switching of audio & USB 3.2 allows audio & USB 3.2 to either switch with the console or stay at a certain PC Port
Watch the Product Introduction video:

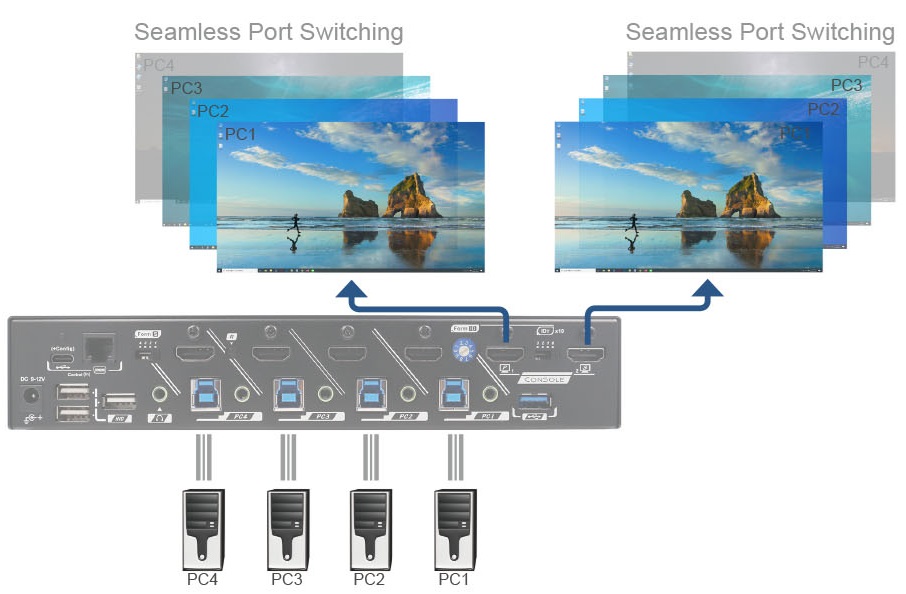

Connection Diagram
 |
