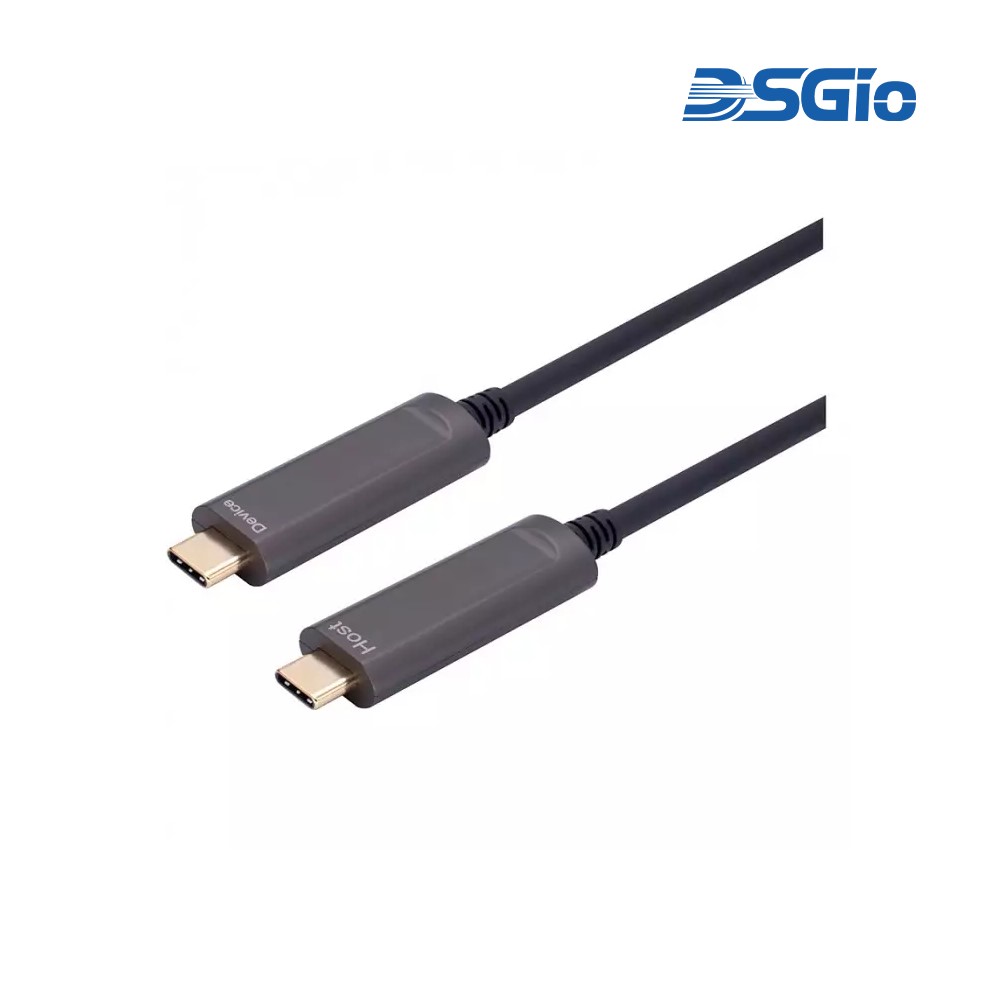

UDC-CCF10G-XXXM (Data Only)

USB 3.2 Gen2x1, 10Gbps, Type C to Type C, Data Only, Backward Compatible, PVC



The USB 3.2 Gen2x1 (also referred to as USB 3.1) Type-C Active Optical Cable combines advanced optical fiber technology with high-speed data transmission capabilities. Offering a maximum length of up to 15m, it ensures stable signal quality without electromagnetic interference (EMI), supporting super-speed data rates of 10Gbps. Compliant with USB 3.1 standards, it seamlessly integrates backward compatibility with USB 2.0/1.1. This AOC solution stands as a reliable and competitive choice for applications requiring robust high-speed data transmission.





  • Category: USB-C Active Optical Cables
  • SKU: UDC-CCF10G-XXXM
  • Length: 5m, 8m, 10m, 12m, 15m

Overview

Product Features

Connection Diagram

Downloads

The USB 3.2 Gen 2x1 Type C AOC is the first-generation active optical cable of its kind in the market. It offers super-speed data transmission using optical fiber, supporting lengths up to a maximum of 15 meters while ensuring highly stable signal quality with no electromagnetic interference (EMI). The cable supports a data transfer rate of 10Gbps, fully meeting the USB 3.2 Gen 2x1 (USB 3.1) standard and is also backward compatible with USB 2.0/1.1. This makes it a mature and competitive solution in the high-speed data transmission market.


Features

·       Meets USB 3.2 Gen 2x1 Standard: Supports a bandwidth of up to 10Gbps super speed, previously known as USB 3.1 Gen 2.

·       Uncompressed Signal: Ensures signal integrity and maintains high image quality without distortion.

·       Hybrid Copper and Fiber Design: Combines copper and fiber optics to reduce interference, eliminate radiation, and enhance resistance to EMI (Electromagnetic Interference).

·       Standard USB Type-C Interface: Compatible with modern USB Type-C ports for versatile connectivity.

·       850nm VCSEL and PIN Photodetector: Utilizes advanced optical components for reliable data transmission.

·       Plug and Play: Supports hot plug functionality for effortless setup and use.

·       Slim Cable Design: Features a compact outer diameter (OD) of less than Φ4.5 mm, making it lightweight and easy to handle.

·       No External Power Required: Operates without the need for an external power supply, enhancing portability.

·       Power Delivery Support: Provides up to 5V/1.5A maximum power to connected devices.

·       Flexible Length Options: Available in lengths ranging from 5 to 15 meters, with customization options for specific distance requirements.




·       Support USB 3.2 Gen 2x1 at 10Gbps

·       Support backward compatible with USB 2.0 and USB 1.1

·       Connector: Gold-Plated USB Type C Male

·       Connector Material: Zinc Alloy

·       Default PVC jacket. CMP & LSZH jacket are optional and build on demand

·       Standard USB Type C Interface; Type C plug both end

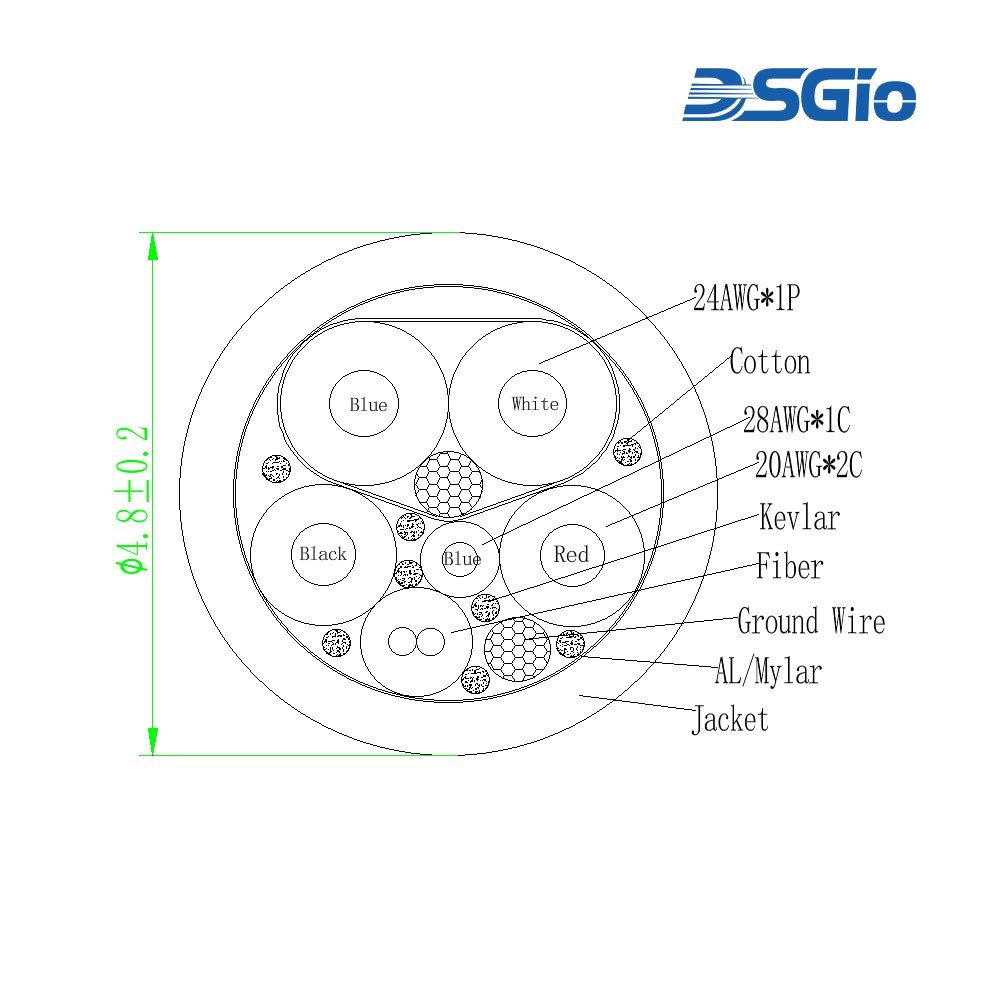

·       Hybrid 4 fiber and 5 copper wires, anti-interference, strong resistance to EMI

·       850nm VCSEL and PIN Photodetector

·       Non-bidirectional

·       Cable OD: 4.5 ± 0.2mm

·       Requires no external power adapter

·       Support 5V/1.5A max power to the remote device

·       Plug and Play; support hot plug

·       Length up to 15m maximum

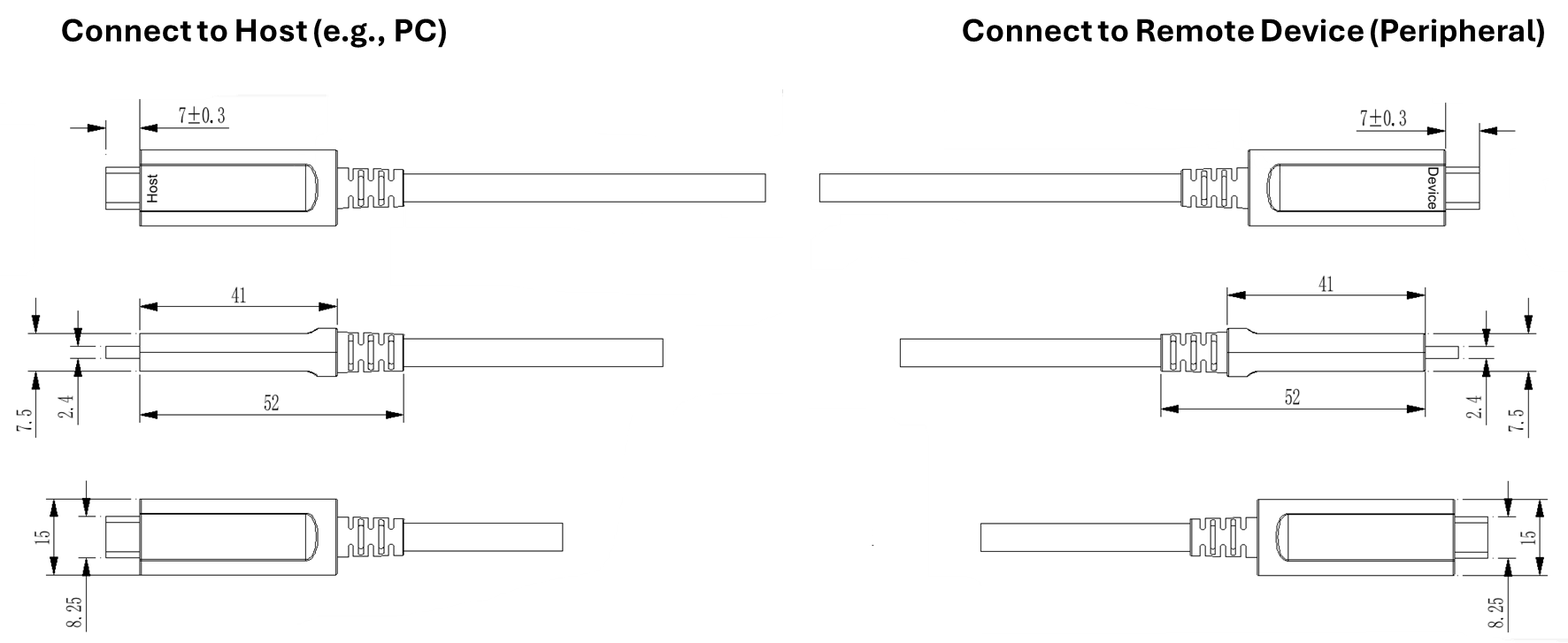

Connection Diagram

UDC-CCF10G-XXXM (Data Only)(图1)
