UFF-CCF10G-XXXM (Data + Video + PD)

USB 3.2 Gen 2x1 Adaptive 2 or 4 Lanes Type C Full Featured AOC

Data 10G + Video 4K + PD 60W, Backward Compatible



The UFF-CCF10G-XXXM USB-C AOC cable offers versatile connectivity, supporting 4-lane DP 2.1 with USB 2.0 or 2-lane DP 1.4 with USB 3.2 at 10Gbps, ensuring high-performance video and data transfer. It is backward compatible with USB 2.0/1.1, and provides Power Delivery (PD) of up to 60W for cables between 5m and 10m, and 40W for longer lengths (max 15m). This plug-and-play, driver-free cable is also highly resistant to EMI and RFI, making it ideal for environments where signal integrity is critical.



  • Category: USB-C Active Optical Cables
  • SKU: UFF-CCF10G-XXXM
  • Length: 5m, 8m, 10m, 15m
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

The UFF-CCF10G USB-C to USB-C Active Optical Cable (AOC) series redefines the capabilities of traditional AOCs by offering support for two configurations: 4-lane DisplayPort (DP) 2.1 + USB 2.0, or 2-lane DP 1.4 + USB 3.2 (10Gbps). By utilizing optical fiber instead of copper for high-speed signal transmission, these cables are longer, thinner, more flexible, and free from radiation and electromagnetic interference (EMI).

The UFF-CCF10G series enables multiple functions, including 10Gbps data transfer via USB 3.2, DisplayPort video output, and Power Delivery (PD) charging, while maintaining backward compatibility with USB 2.0 and 1.1. This makes it an ideal solution for a wide range of applications.




·       Supports Full Function Type-C Mode, 4-Lane DP 2.1 + USB 2.0, and 2-Lane DP 1.4 + USB 3.2 10Gbps. The two modes switch automatically.

·       Supports bi-directional data transfer at 20Gbps

·       Backward compatible with USB 2.0 and USB 1.1

·       Connector: Nickel-Plated USB Type-C Male

·       Connector Material: Zinc Alloy

·       Supports DP-Alt-Mode at 4K@60Hz / 8K@30Hz

·       Supports PD (Power Delivery) up to 60W (20V/3A) for lengths up to 10m (40W for lengths over 10m)

·       Requires no external power adapter

·       Hybrid cable with 5 fiber strands and 12 copper wires

·       Cable OD (Outer Diameter): 6.5 ± 0.2mm

·       Default Jacket: PVC

·       Maximum Length: Up to 15m

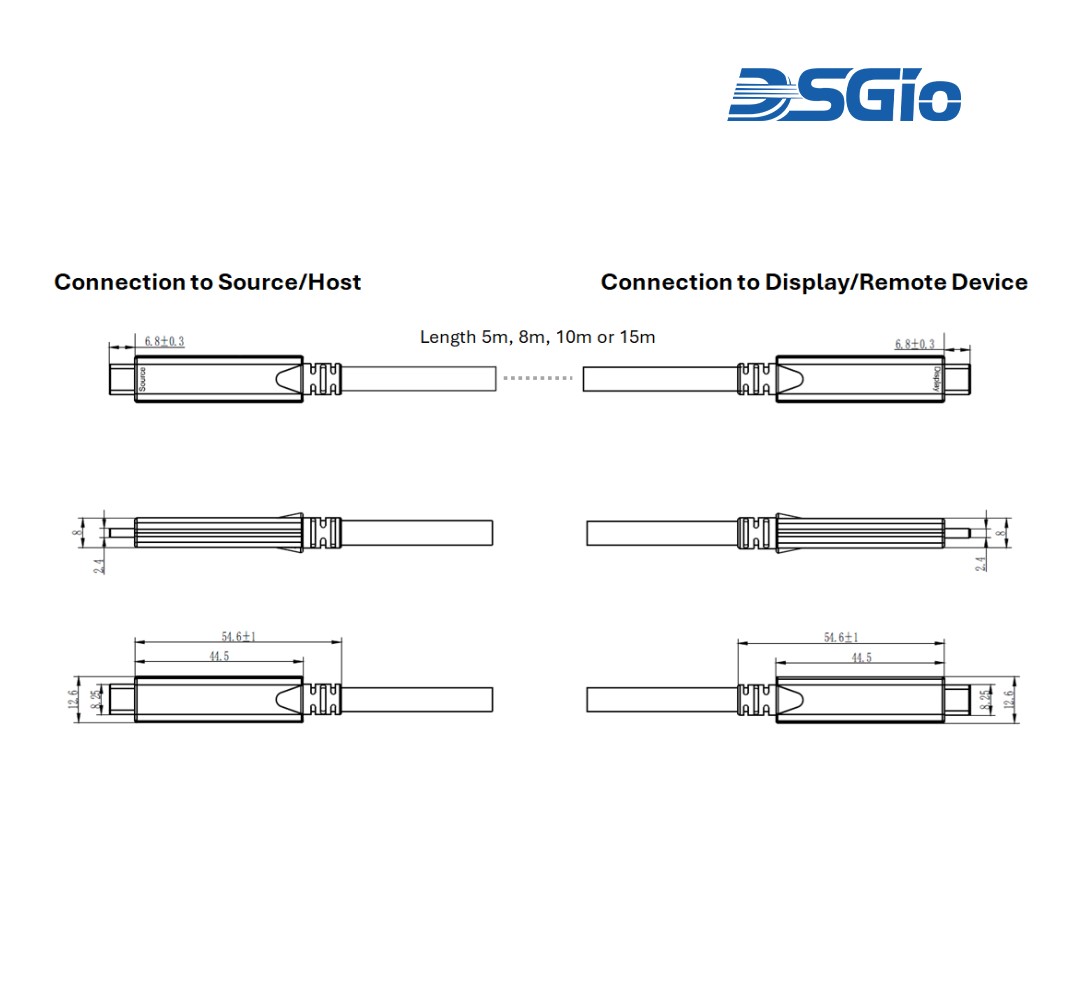

Connection Diagram

UFF-CCF10G-XXXM (Data + Video + PD)(图1)

Note:

·       Supports 4 Lane DP2.1+USB2.0 & 2 Lane DP1.4+USB3.2

·       Supports 4K@60Hz video transmission

·       Supports 10Gbps data transmission. Bi-directional 20Gbps.

·       Backwards USB 2.0 & USB 1.1 compatible

·       Supports PD 60W (20V/3A) Power Delivery up to 10m. PD 40W for over 10m.





Flyer

UFF-CCF10G-XXXM (Data + Video + PD)(图1)Flyer - AOC Cables Intro PIFA2024 PDF



Datasheet

UFF-CCF10G-XXXM (Data + Video + PD)(图1)(UFF-CCF10G-XXXM) AOC USB 3.2 Gen2x1 Adaptive 2 or 4 Lanes Type C Full Featured AOC Datasheet Rev1.0 PDF
