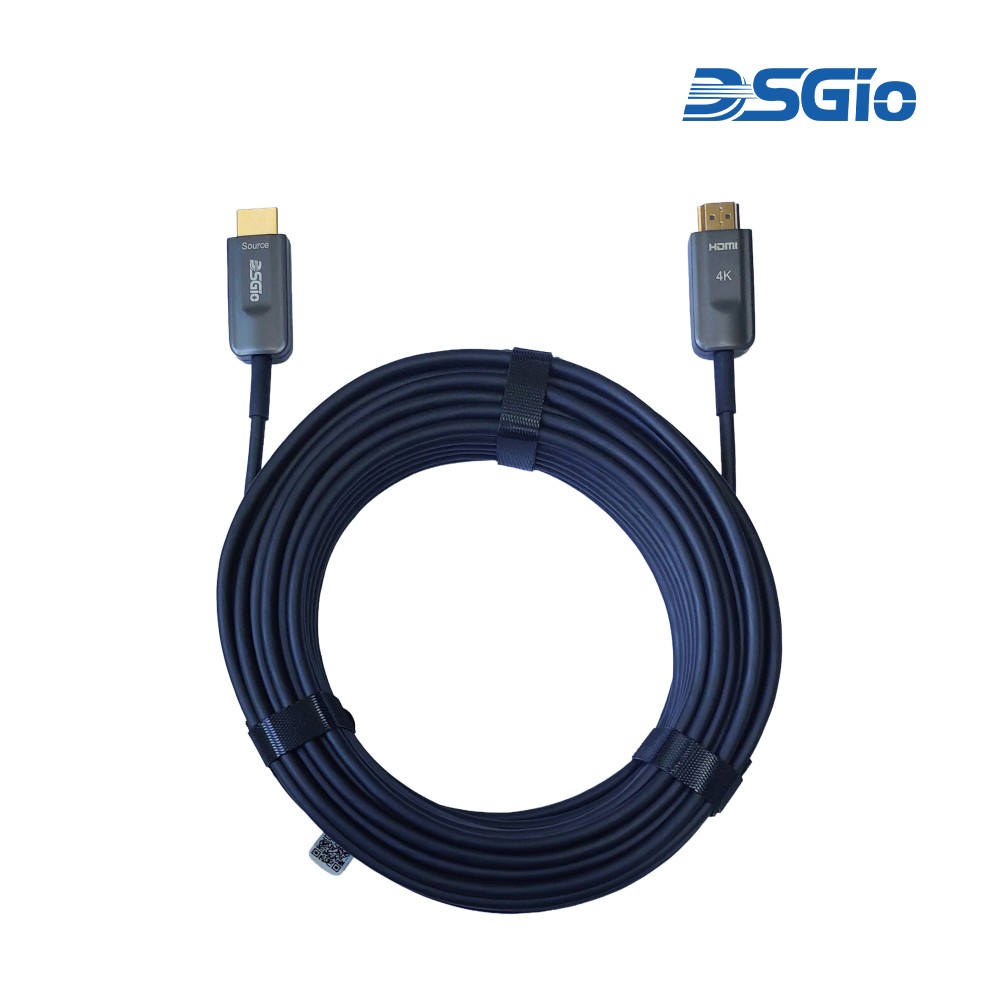

HDMI 2.0 Active Optical Cable
The HDMI 2.0 Active Optical Cable (AOC) is designed to provide high-speed, long-distance transmission of uncompressed video and audio signals. Utilizing a hybrid construction of optical fibers and copper conductors, this cable delivers exceptional performance and signal integrity over extended distances, making it ideal for professional audio-visual installations, home theatres, and other demanding applications.
Our HDMI Active Hybrid Cable is a leading solution for long-distance HDMI connections. Leveraging the capabilities of HDMI 2.0, it supports a maximum data rate of 18 Gbps, utilizing three TMDS (Transition-Minimized Differential Signaling) channels, each capable of 6 Gbps. This allows for high-resolution video (up to 4K at 60Hz), enhanced audio quality, and support for a broader range of color spaces. The cable is lightweight, flexible, and features an ultra-small long-term bending radius of 45mm, making it ideal for installations in tight spaces. With our advanced optical engine embedded, this HDMI Hybrid Cable ensures full HDMI signal integrity over lengths of up to 100 meters. It is plug-and-play with no external power required, providing a hassle-free solution for your high-definition audio and video needs.
Features
· 4K UHD and HDR Support: Delivers stunning 4K resolution at 60Hz with high dynamic range for vivid, lifelike visuals
· Maximum Length: Up to 100 meters (Custom lengths available)
· Data Transmission: Supports up to 18 Gbps super speed with high bandwidth for high-definition video and audio formats
· Resolution and Audio Support: Up to 4K@60Hz (color space 4:4:4), 3D, Deep Color, and multi-channel audio including Dolby TrueHD and DTS-HD Master Audio
· Plug and Play: No need for external power supplies or software drivers, ensuring hassle-free setup
· HDMI 2.0 Compatibility: Supports EDID, CEC, HDCP 2.2, HDR, HEC, ARC, etc.
· Easy Identification: Connectors clearly marked with "Source" and "Display"
· Hybrid Optical Construction: Composed of 4 optical fibers and 7 copper wires
· Signal Integrity: No loss of signal, delivering crystal-clear digital images instantly; reduced EMI and RFI due to hybrid optical design
· Durability: High pulling strength and compression load
· Interference Immunity: Optical fiber construction provides immunity to electromagnetic interference (EMI) and radio frequency interference (RFI)
· Lightweight and Flexible Design: Facilitates easy installation and cable management for various routing scenarios
· Compatible with HDMI 2.0 standard: EDID, CEC, HDCP2.2, HDR, HEC, ARC, etc
· Support up to 4K60Hz 4:4:4 resolution
· Data transfer rates up to 18Gbps
· Delivers dual video streams to compatible displays
· 21:9 cinema aspect ratio and BT.2020 colorimetry
· Compliant with Category 2 specifications (600MHz clock frequency)
· Up to 32 audio channels with a 1536KHz sampling rate
· Supports up to eight PCM channels, DTS-HD Master and Dolby Digital True HD surround sound audio
· No loss of signal – delivering crystal clear digital images instantly
· Cable OD: 4.5mm, 4 fiber + 7 copper wire
· Up to 100m Maximum Length (Custom Length Available)
· Low Power Consumption: 250mW (max)
· Zinc-alloy HDMI connectors for enhanced durability and performance
· OM3 fiber technology greatly reduces EMI/RFI emissions
· Triple-shielding further protects against interference for optimal signal quality
· Extended temperature range from -40° to 70°C for installations in harsh environments or manufacturing floors
· PVC jacket complies with fire protection regulations and increases the safety of employees in the event of a fire
· Has Source & Display clearly printed on the connector for easy identification
· Has high pulling strength and compression load
· Plug and Play, no external power required
