UDC-AMCM10G-XXXM

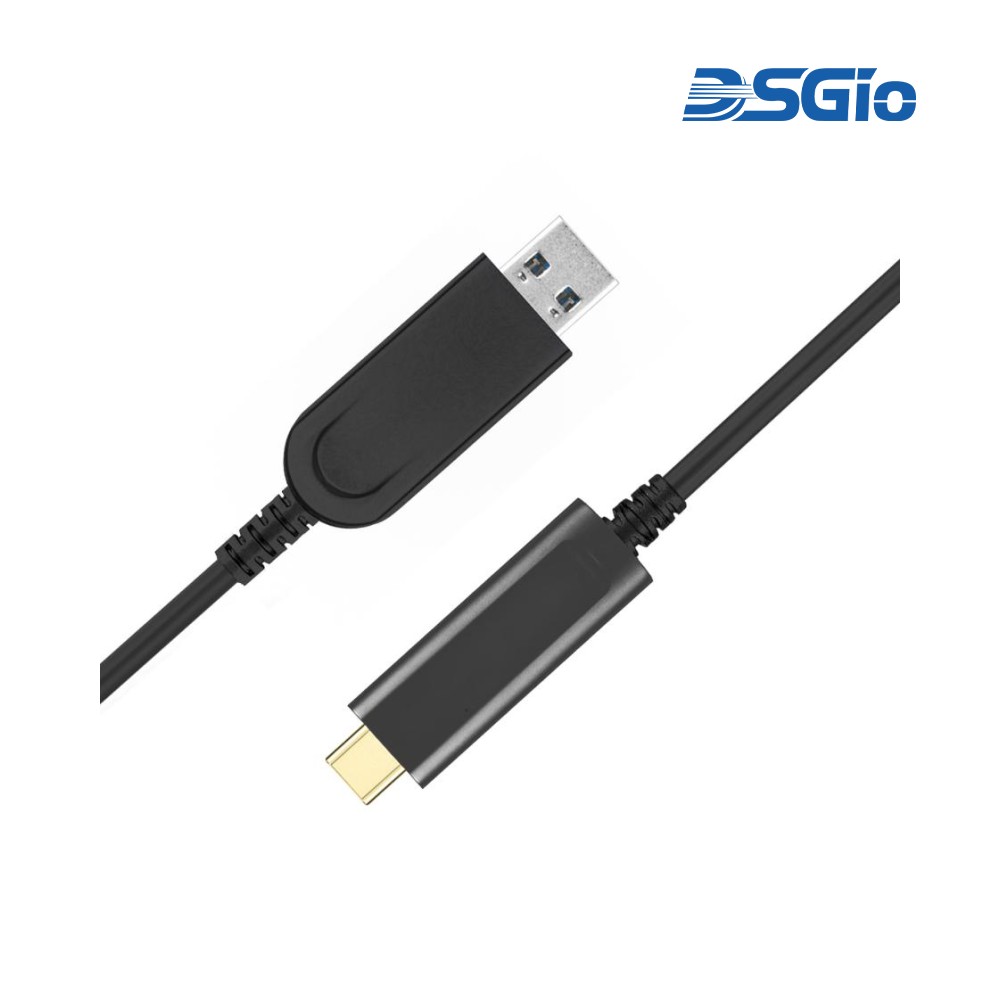

The USB 3.1 Type A Male to Type C Male Active Optical Cable (AOC) is a Gen2 active optical cable that supports backward compatibility with USB 2.0 and USB 1.1. Its high-speed data transmission relies on optical fiber, enabling significantly longer cable lengths, up to 15 meters, while ensuring stable signal quality with no EMI interference. It supports 10Gbps SuperSpeed transmission, meeting the USB 3.1 Gen2 (now renamed USB 3.2 Gen2) standard. This optical fiber cable is ideal for applications where an on-site power supply is unavailable, such as machine vision, remote monitoring, and more.
· Engineered to meet USB 3.1 Gen2 standard supporting data transfer rates of up to 10Gbps over distances of up to 15m (49.2ft).
· Supports lengths up to 15m.
· Supports USB 3.0 devices and backward compatible with USB 2.0, and USB 1.1.
· Provides up to 5V/900mA power to connected devices.
· Compatible with Windows, Mac OS, and Linux.
· Plug-and-play, requires no external power adapter.
· Offers fiber-optic noise immunity for high-performance, interference-free connections.

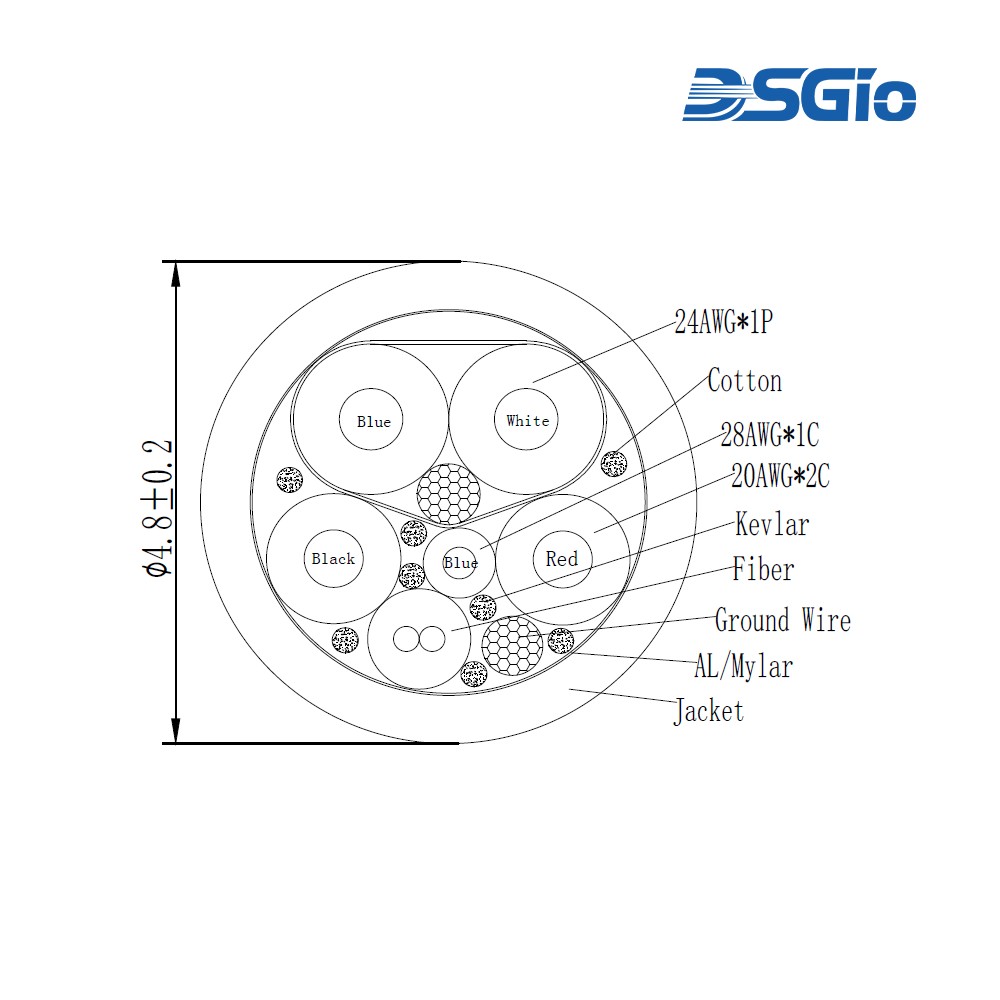

· Black PVC Jacket, Cable Outer Diameter 4.8mm.
· Upstream (PC side) and downstream (device side) both support USB 3.0, USB 2.0, and USB 1.1.

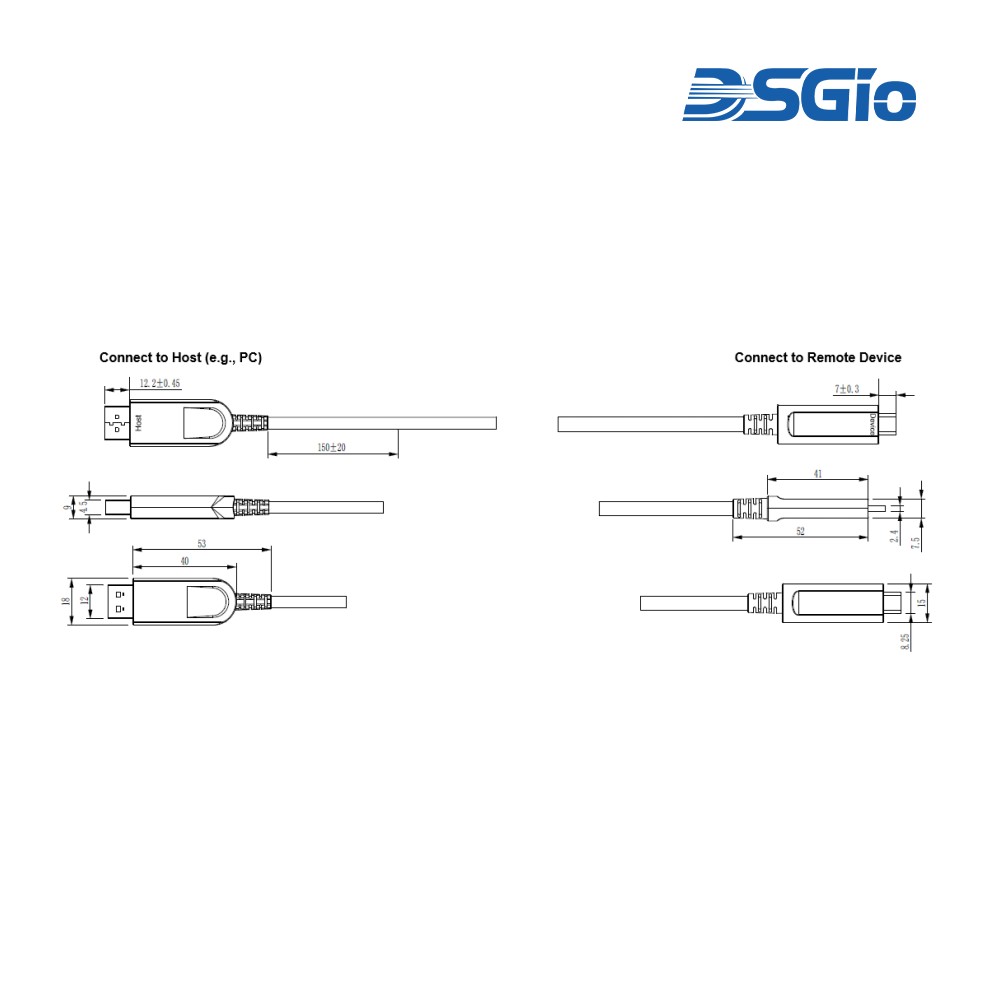

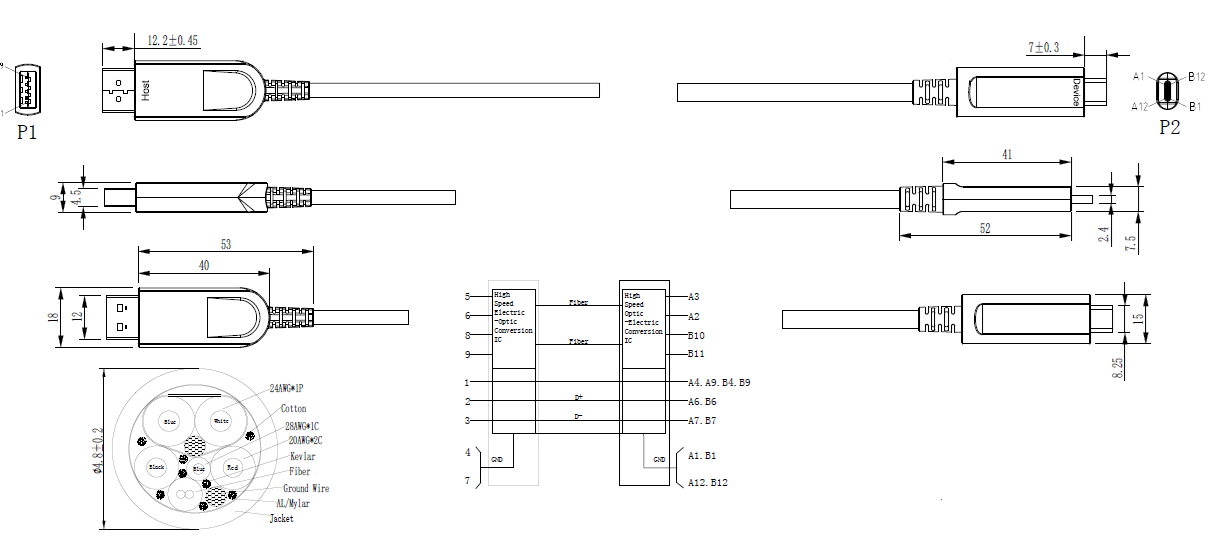

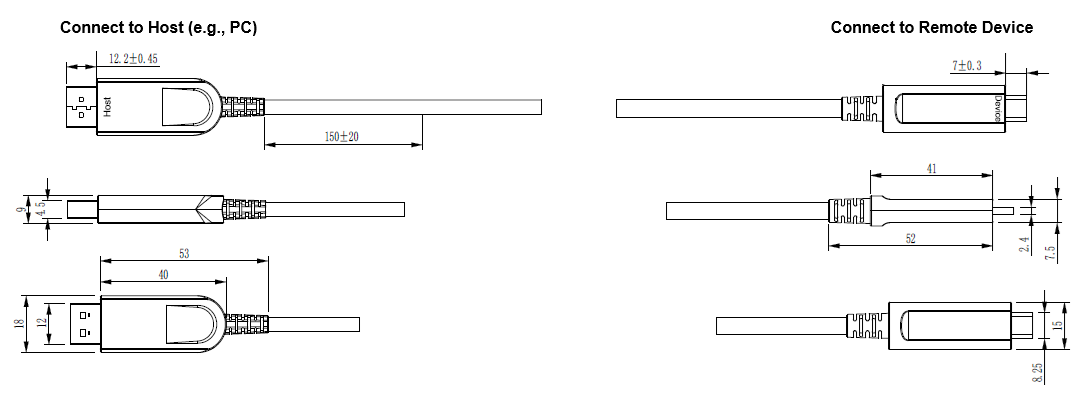

Connection Diagram
