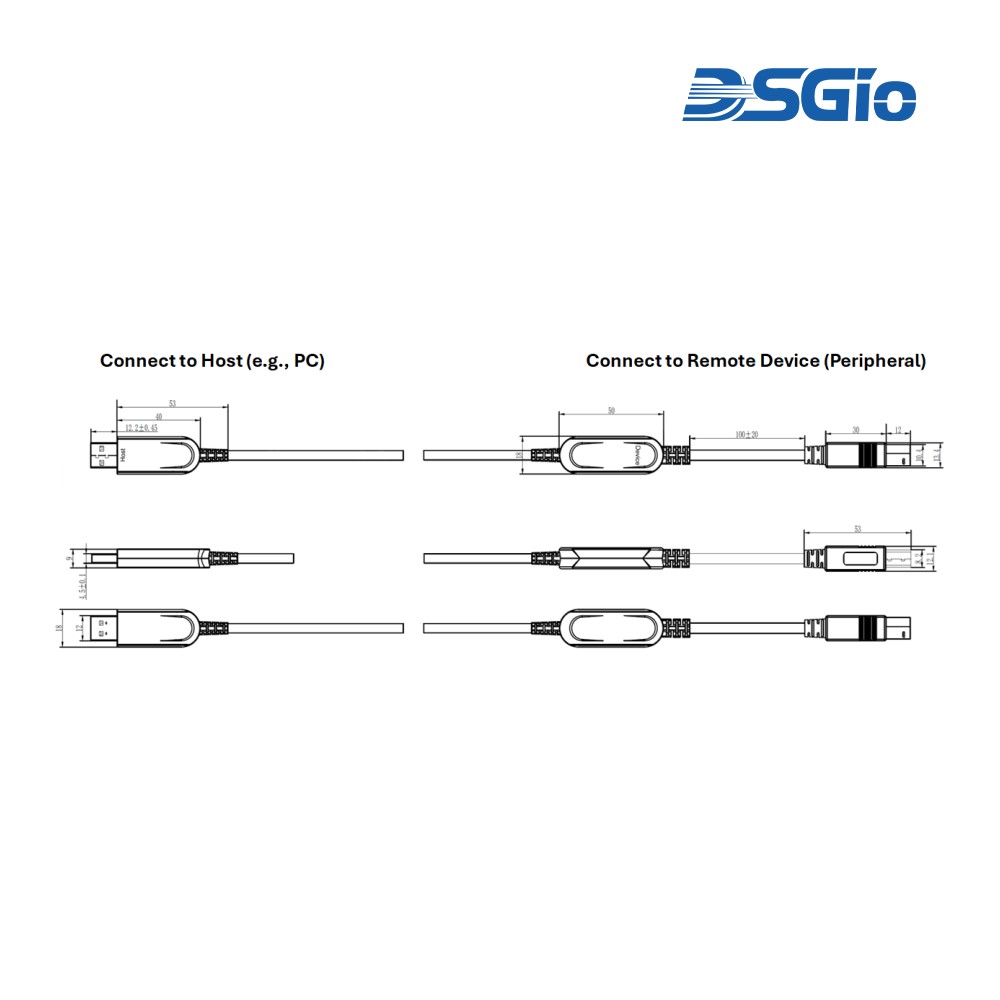

  • UDC-AMBM10G-XXXM Cable Construction
  • UDC-AMBM10G-XXXM Connection Diagram

UDC-AMBM10G-XXXM

USB 3.0 Type A Male to Type B Male AOC, Supports Gen 2 10Gbps, Backward Compatible with USB 2.0 and 1.1, PVC



The USB 3.0 Type A to Type B Active Optical Cable (AOC) supports data transfer rates of up to 10Gbps, offering high-speed performance over lengths up to 15 meters. It delivers stable operation without RF interference, ensuring reliable performance in complex environments. The cable is compatible with a wide range of USB Type B devices, including printers, scanners, KVM switchers, and supports major operating systems like Windows, Mac OS, and Linux. With a maximum power delivery of 5V 900mA and backward compatibility with USB 2.0/1.1, the AOC provides versatile connectivity without requiring a power adapter at the host end.





  • Category: Active Optical Cables
  • SKU: UDC-AMBM10G-XXXM
  • Length: 5m, 8m, 10m, 12m, 15m
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

The USB 3.0 Type A Male to Type B Male Active Optical Cable (AOC) is a groundbreaking Gen 2 active optical cable that sets a new standard in high-speed data transmission. It delivers super-speed data transmission using optical fiber, supporting lengths of up to 15m with stable signal quality and zero EMI. This cable supports 10Gbps data rates, fully complies with the USB 3.1 standard, and is backward compatible with USB 2.0 and 1.1. It offers a mature and competitive solution for high-speed data transmission applications.

UDC-AMBM10G-XXXM


·       Engineered to meet USB 3.1 Gen2 standard supporting data transfer rates of up to 10Gbps over distances up to 15m (49.2ft).

·       Supports lengths up to 15m.

·       Supports USB 3.0 devices and backward compatible with USB 2.0, and USB 1.1.

·       Provides up to 5V/900mA power to connected devices.

·       Compatible with Windows, Mac OS, and Linux.

·       Plug-and-play, requires no external power adapter.

·       Offers fiber-optic noise immunity for high-performance, interference-free connections.

·       Black PVC Jacket, Cable Outer Diameter 4.8mm.

·       Upstream (PC side) and downstream (device side) both support USB 3.0, USB 2.0, and USB 1.1.

·       Suitable for printers, scanners, meeting cameras, KVM switches, and other Type B devices.




Connection Diagram

UDC-AMBM10G-XXXM Connection Diagram


Flyer

UFF-CCF10G-XXXM (Data + Video + PD)(图1)Flyer - AOC Cables Intro PIFA2024 PDF



Datasheet

UDC-AMBM10G-XXXM(图2)UDC-AMBM10G-XXXM, AOC USB 3.0 10Gbps AM-BM Datasheet Rev1.1 PDF
