DP 1.4 Active Optical Cable

DP 1.4 to DP 1.4 AOC, supports 8K@60Hz, 32.4Gbps, PVC

Our DisplayPort 1.4 AOC cables provide high-bandwidth connectivity for displays, supporting resolutions up to 8K at 60Hz or 4K at 120Hz. They feature robust optical fiber technology for reliable data transmission over long distances, ideal for professional AV setups and high-performance computing.



  • Category: Active Optical Cables
  • SKU: VDC-DF14-XXXM
  • Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 70m, 90m, 100m

Overview

Product Features

The DisplayPort 1.4 Active Optical Cable (DP 1.4 AOC) is a cutting-edge audio/video cable designed for high-definition signal transmission using optical fiber. This technology allows for extended lengths of over 100 meters while maintaining superior signal quality and complete immunity to electromagnetic interference (EMI) and radio frequency interference (RFI). The cable supports an impressive 8.1 Gbps bandwidth per channel, resulting in a total bandwidth of up to 32.4 Gbps across four lanes. This enables the delivery of 8K resolution with exceptional clarity and performance, fully compliant with the DP1.4 standard. Such high bandwidth ensures smooth and reliable transmission for even the most demanding applications, making it a mature and competitive solution in the high-speed data transmission market. Its optical fiber design not only enhances signal stability but also ensures that there is no degradation in signal quality over long distances. The DP 1.4 AOC features plug-and-play functionality with no need for external power. This versatile optical fiber cable can be used with computers featuring USB Type-C interfaces, outdoor displays, LED signboards in streets and stadiums, and security systems, providing reliable audio and video signal transmission.



Features

·       8K Support: Capable of supporting resolutions up to 8K@60Hz. Fully compatible with HBR3, HDCP 1.4 and HDCP 2.2 standards, ensuring excellent compatibility with various devices.

·       High Bandwidth: Adheres to the DP 1.4 standard, providing a bandwidth of up to 8.1Gbps per channel, and total 32.4Gbps bandwidth.

·       Extended Length: Supports length up to a maximum of 100 meters, with customizable length option available.

·       Hybrid Construction: Fiber and copper hybrid construct makes the cable slimmer and lighter.

·       Flexible Design: Features a 4.8mm outer diameter, offering great flexibility.

·       Low Interference: Designed with a low RFI/EMI profile making it suitable for sensitive applications.

·       Easy Installation: Plug and play functionality for hassle-free setup.


·       Compliance with 7680 x 4320 (8K)@ 60 Hz 4:2:0 resolutions up to 100 meters

·       Data transfer rates up to 32.4 Gbps

·       Compatible with DP 1.4 standard: EDID, HBR3, HDCP 2.2, HDR (High Dynamic Range), HEC, etc

·       21:9 cinema aspect ratio and BT.2020 colorimetry

·       Up to 32 audio channels with a 1536KHz sampling rate

·       Delivers dual video streams to compatible displays

·       Zinc-alloy DP connectors for enhanced durability and performance

·       Cable OD: 4.8mm, 4 fiber + 8 copper wire

·       Triple-shielding further protects against interference for optimal signal quality

·       OM3 fiber technology greatly reduces EMI/RFI emissions

·       Hybrid construction utilizes both fiber and copper to supply power

·       Extended temperature range from -40° to 70°C for installations in harsh environments or manufacturing floors

·       PVC jacket complies with fire protection regulations and increases the safety of employees in the event of a fire

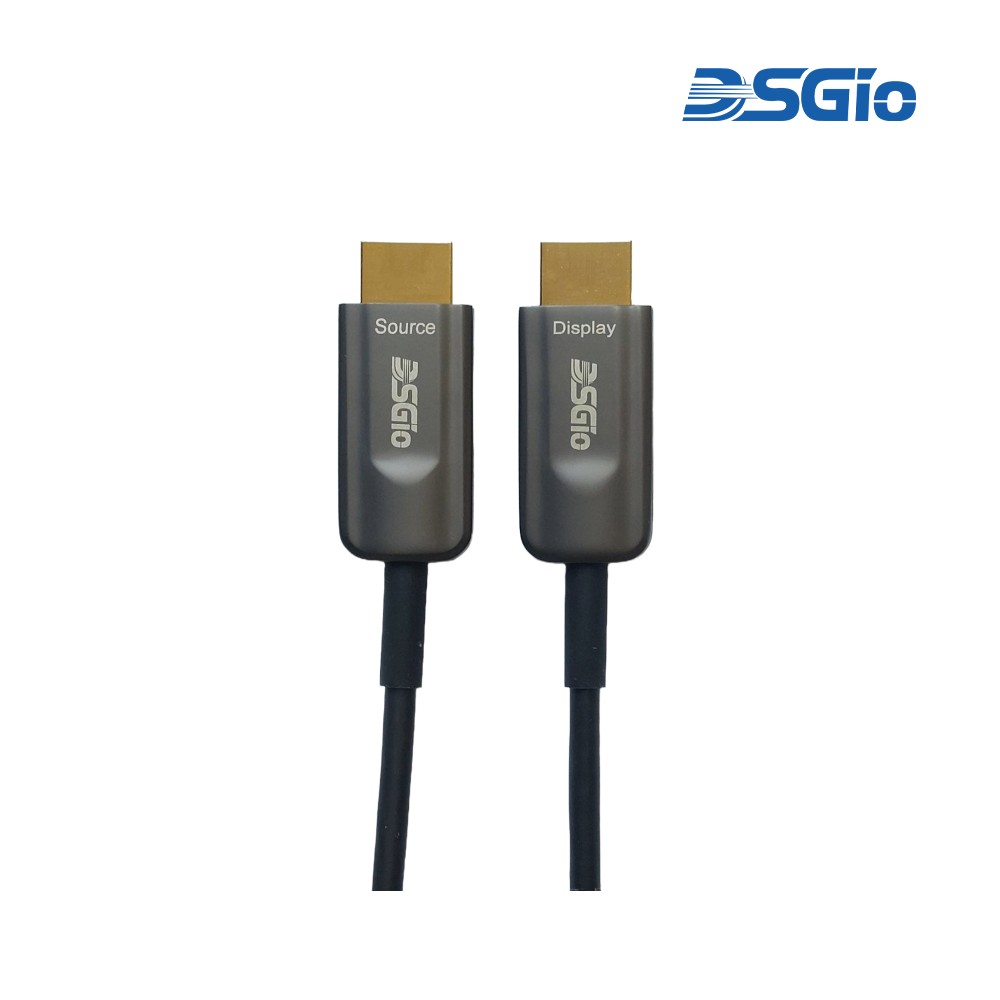

·       Has Source & Display clearly printed on the connector for easy identification

·       Has high pulling strength and compression load

·       Plug and Play, no external power required
