DSG-HDMI-460C

HDMI 2.0b, 4K60, Local Out, 2-Way IR, PoC, 70m



This 18Gbps HDMI Video Extender can extend 4K@60Hz HDMI signals and IR control signal up to 70m (230 feet) via a single CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the Transmitter unit and Receiver unit. It features EDID copy pass-through functionality between the source device and display device, as well as PoC functionality.





  • Category: Video Extenders
  • SKU: DSG-HDMI-460C

Overview

Product Features

Connection Diagram

Downloads

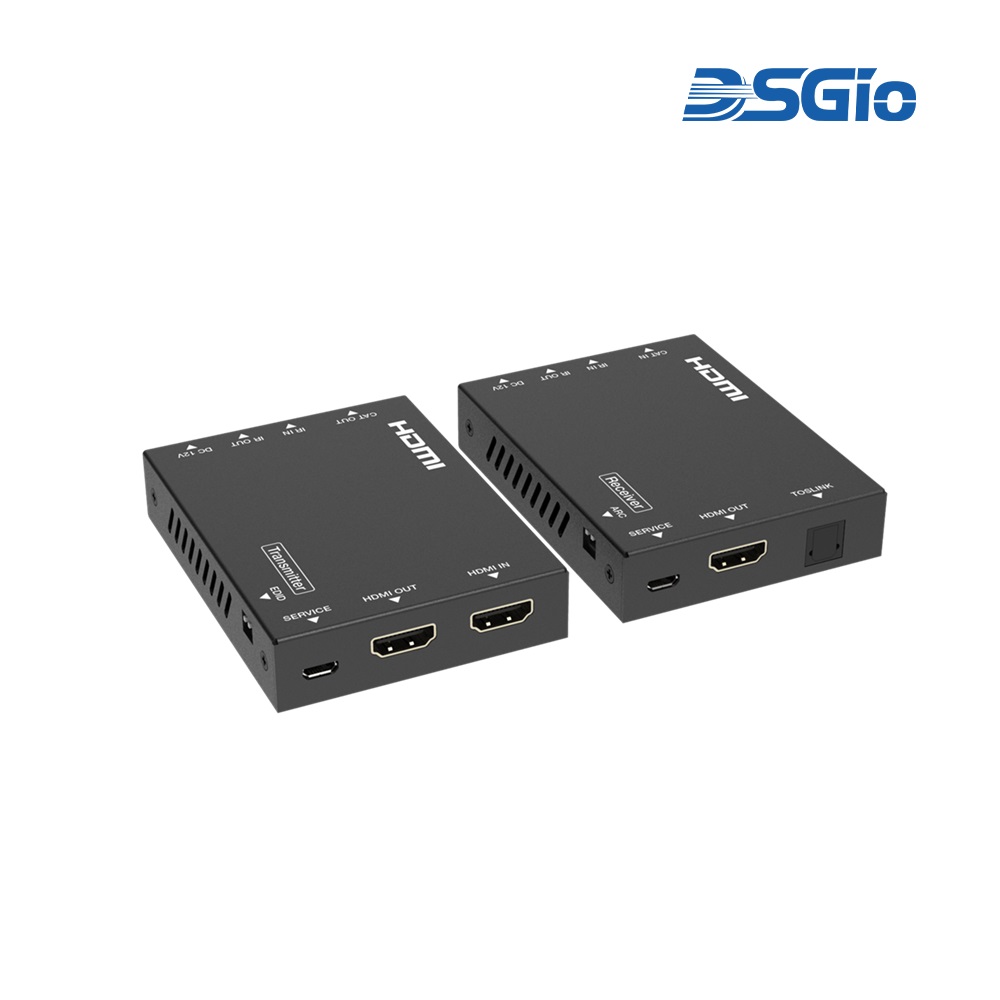

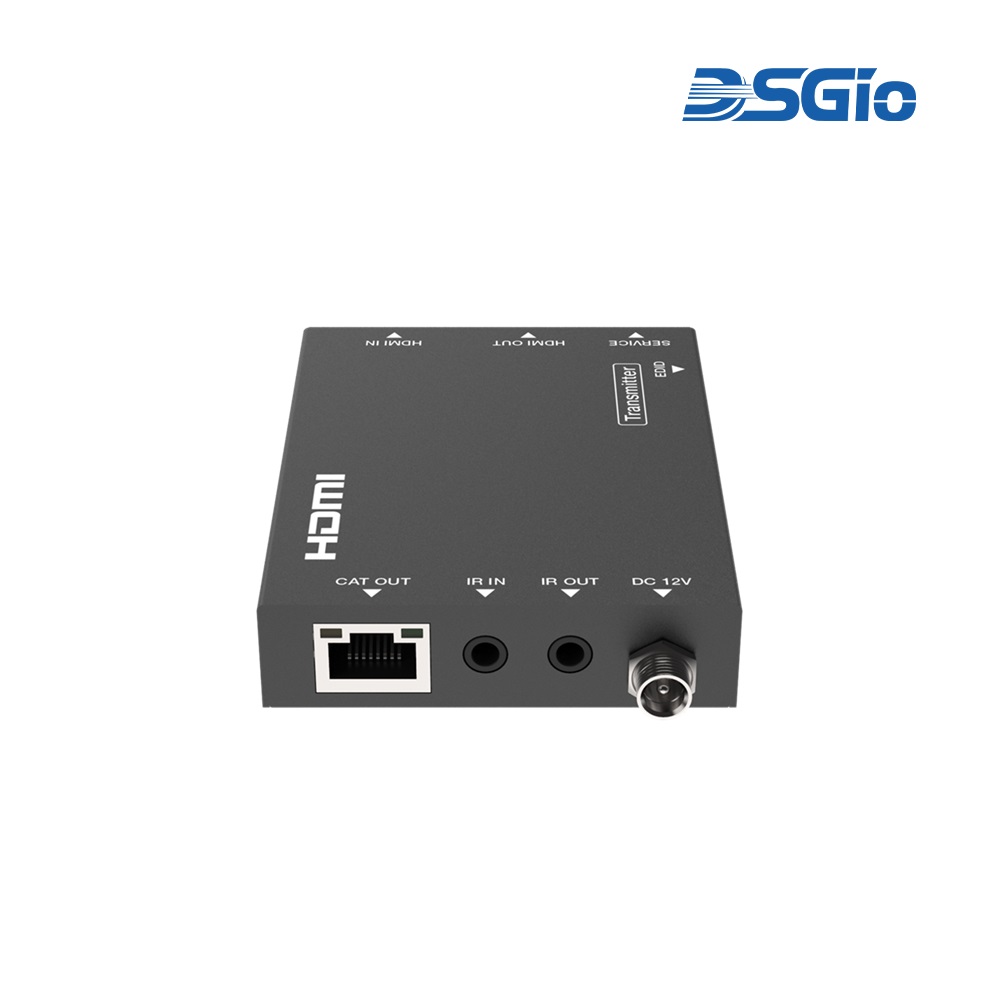

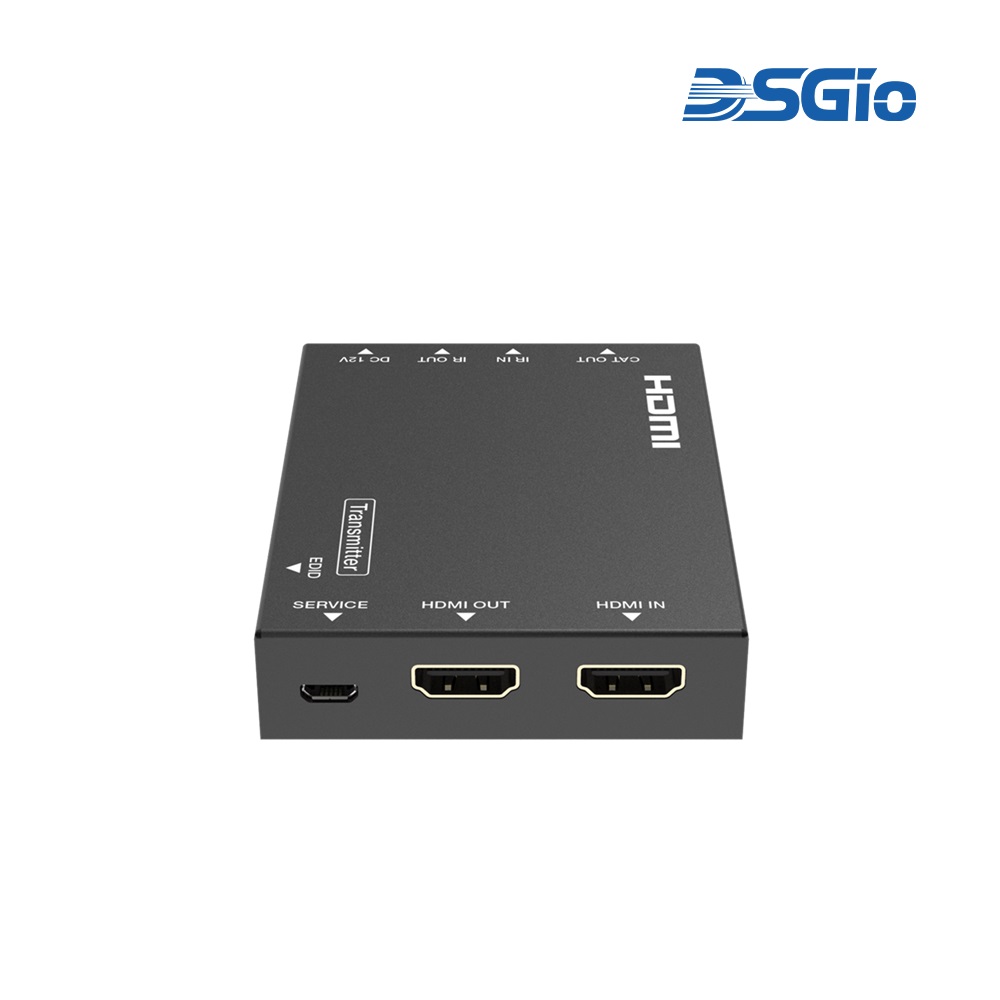

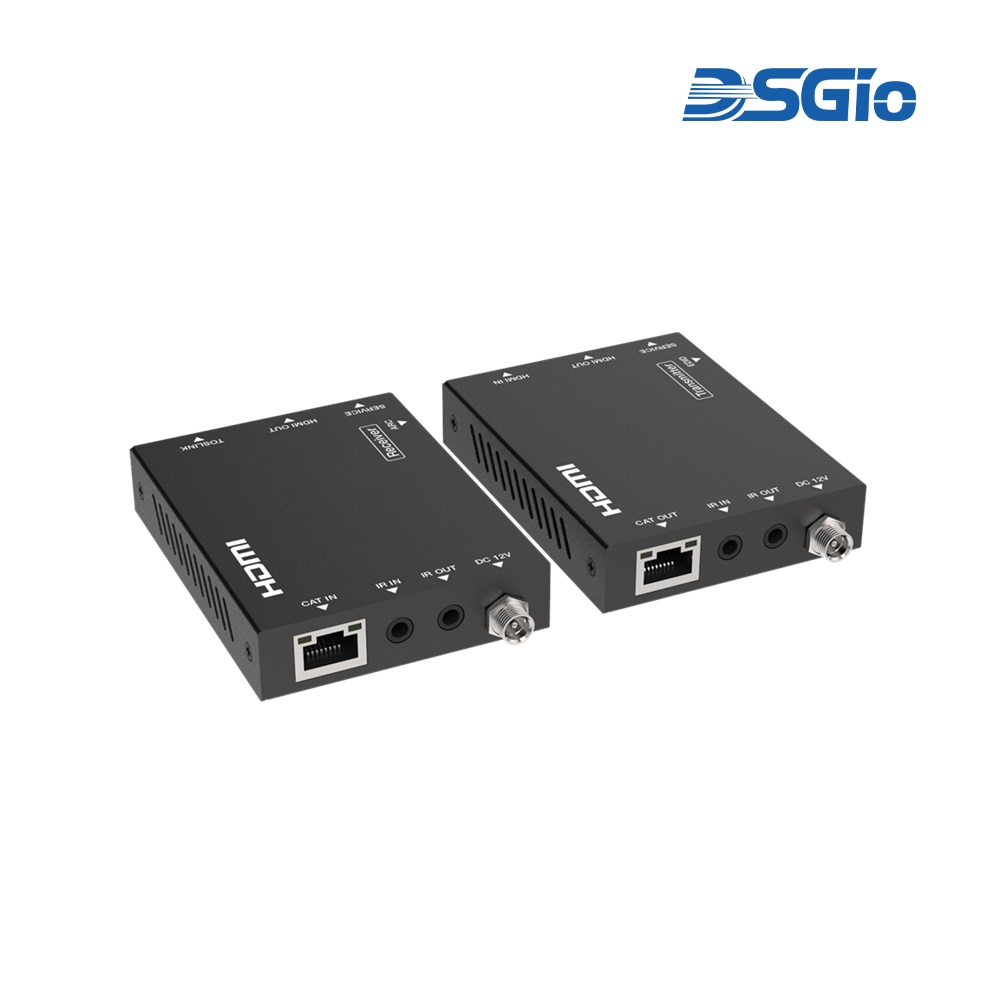

This 18Gbps HDMI Video Extender can extend HDMI signals and IR control signal up to 70m (230 feet) via a single CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the Transmitter and Receiver. The video resolution supports up to 4K@60Hz. It features EDID copy pass-through functionality between the source device and display device, as well as PoC functionality. This Extender is ideal for use in multimedia conference halls, TV teaching, and large-screen displays.



Application Example


DSG-HDMI-460C(图1)


·        HDMI 2.0b and HDCP 2.2 compliant

·        Supports 18Gbps video bandwidth

·        Supports video resolutions up to 4K@60Hz RGB/YCbCr 4:4:4

·        Transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable

·        Supports HDR, HDR10, HDR10+, Dolby Vision, HLG

·        Supports bi-directional IR control signal pass-through

·        Audio formats: LPCM 7.1, Dolby TrueHD, DTS HD Master Audio

·        EDID copy pass-through function between the source device and display device

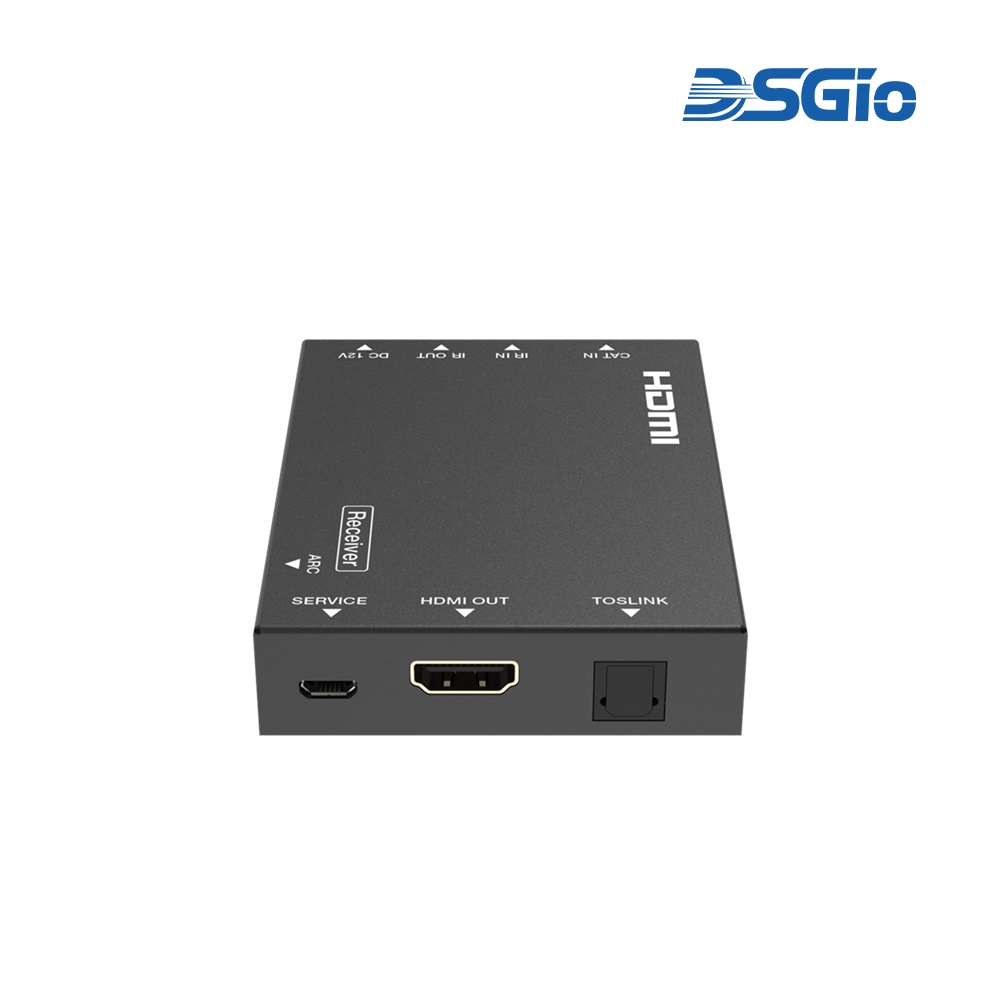

·        Supports ARC and audio de-embedding; audio output through optical fiber port of the Receiver

·        Supports bi-directional PoC (Power over Cable) functionality

·        Compact design for easy and flexible installation




Connection Diagram


DSG-HDMI-460C(图1)
