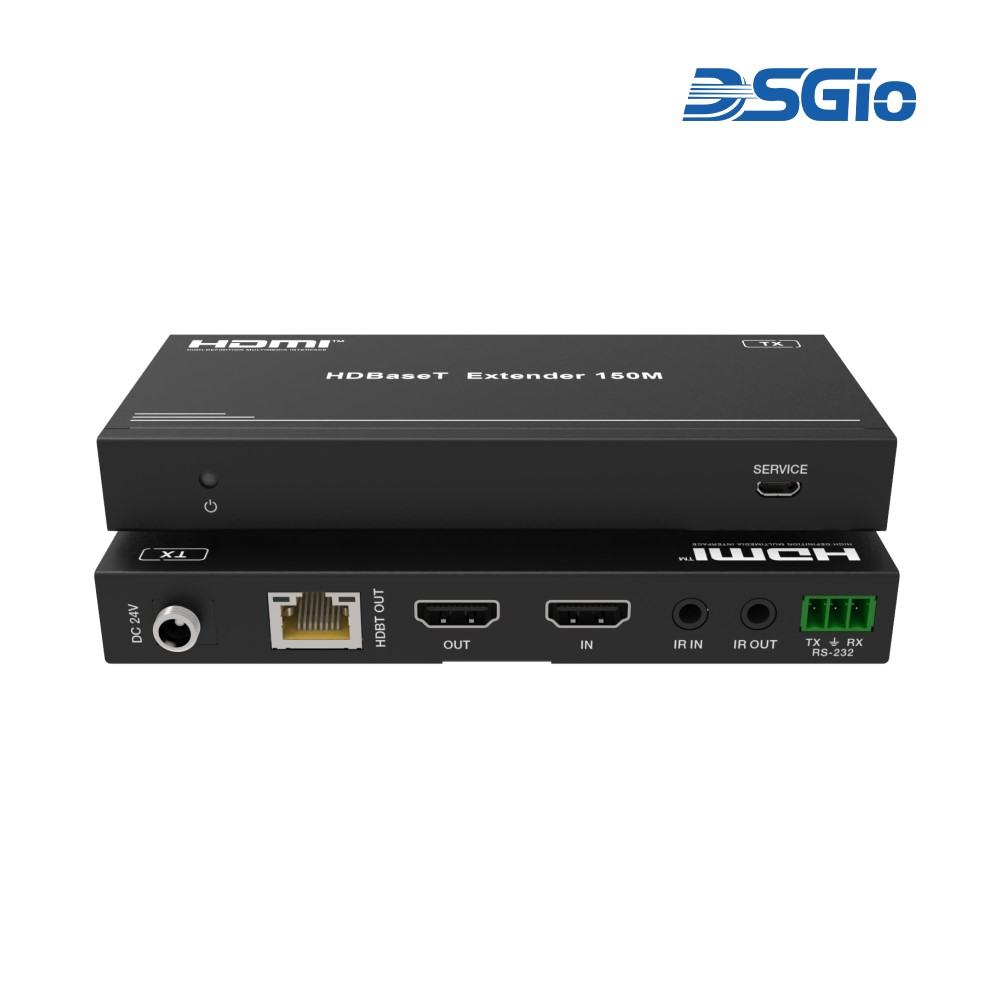

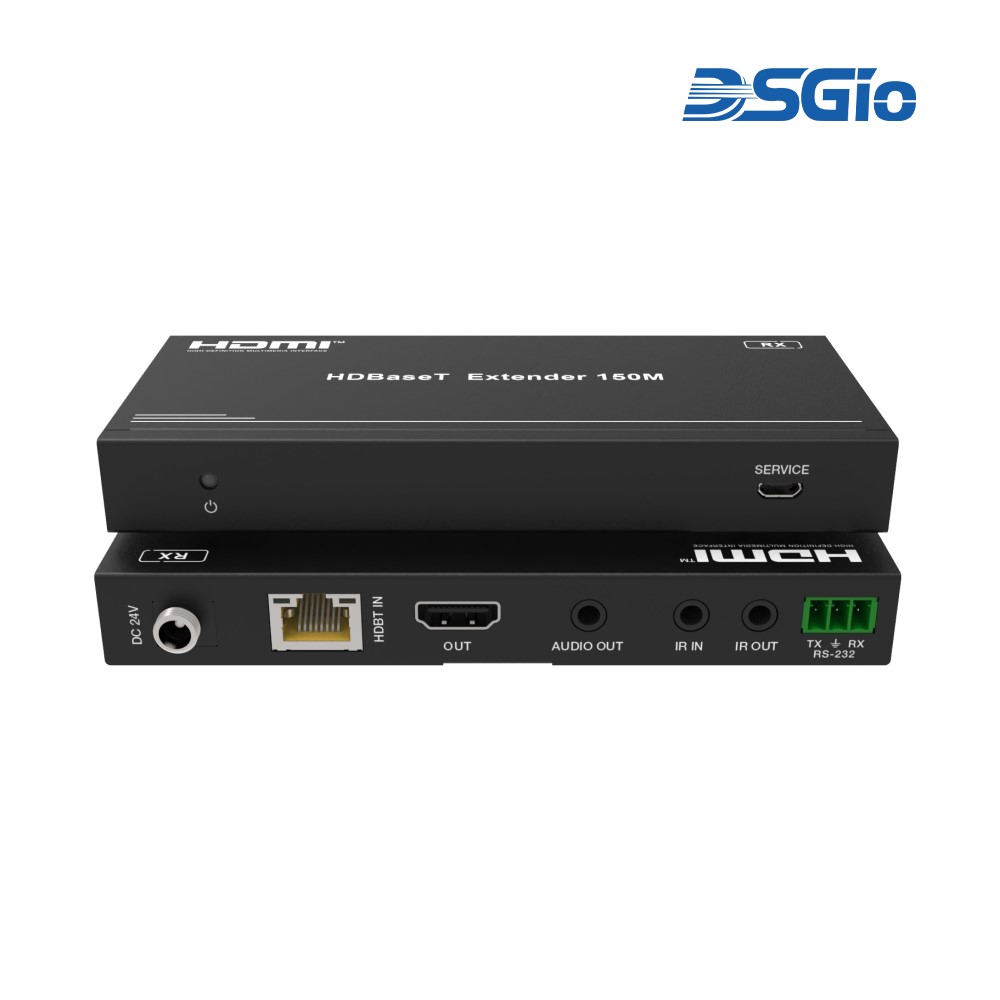

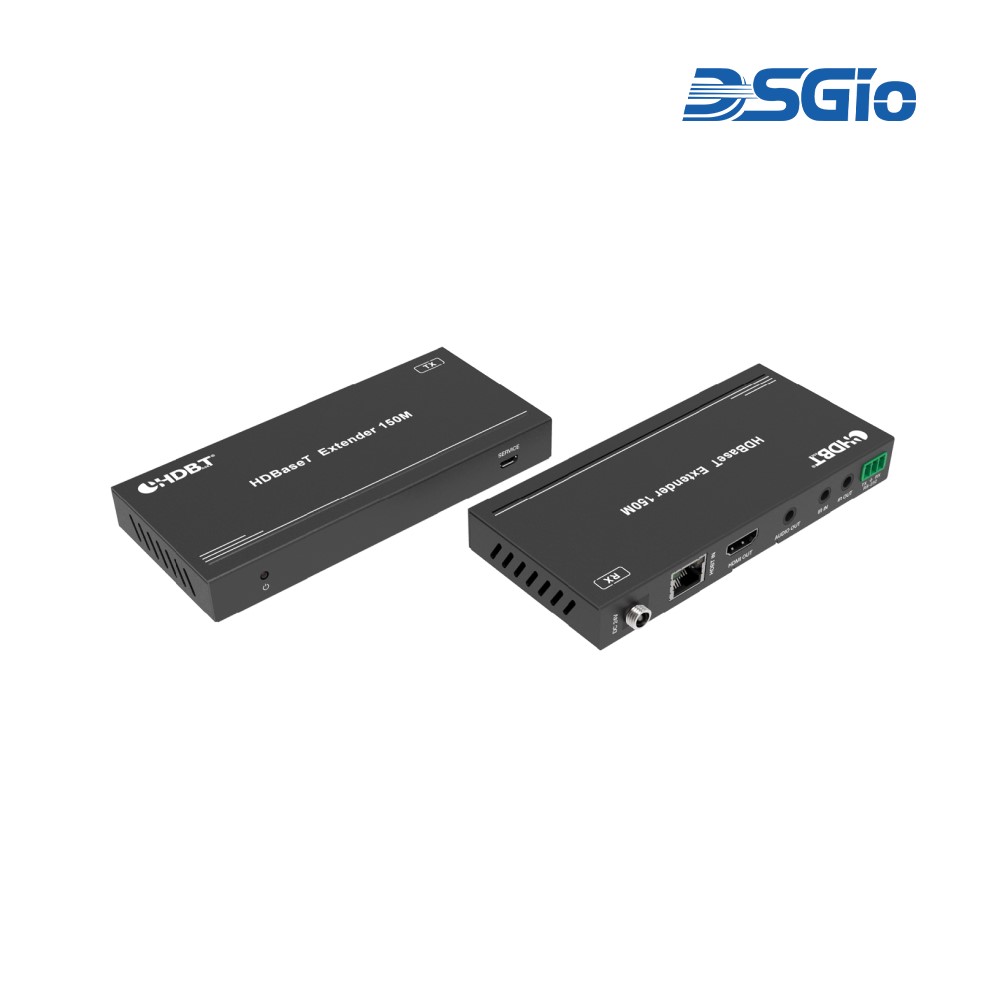

DSG-HDMI-460LR

HDMI 2.0b, 4K60, Local Out, 2-Way IR, RS-232, PoC, 120m



This 18Gbps HDMI Video Extender can transmit 4K@60Hz video and audio signals, RS-232, bidirectional IR, over distances up to 120m (394 feet) between the Transmitter and Receiver using a single CATx cable. The Extender features an HDMI loop-out port for additional output and supports audio de-embedding for L/R audio output. Additionally, the Extender supports two-way IR pass-through, enabling control of both the source and display devices, and also supports Power over Cable functionality.





  • Category: Video Extenders
  • SKU: DSG-HDMI-460LR

Overview

Product Features

Connection Diagram

This 18Gbps HDMI Video Extender can transmit high-definition video and audio signals, RS-232, bidirectional IR, over distances up to 150m (492 feet) between the Transmitter and Receiver using a single CATx cable. It supports resolutions up to 4K@60Hz 4:4:4, 18Gbps bandwidth, and HDCP 2.2. The Extender features an HDMI loop-out port for additional output and supports audio de-embedding for L/R audio output. Additionally, the Extender includes two-way IR passthrough, enabling control of both the source and display devices.

The HDMI extender consists of two units: the Transmitter unit captures HDMI input signals and transmits them via cost-effective Cat5e/6 cable, along with IR control signals. The Receiver unit receives the HDMI signal and transmits IR control signals. This Extender provides a convenient solution for extending HDMI signals over long distances using a single Cat5e/6 cable, making it ideal for various applications. The maximum extended distance is 394ft / 120 meters for 4K signal and 492ft / 150 meters for 1080P signal.

Application Example


DSG-HDMI-460LR(图1)


·        HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

·        Supports 18Gbps video bandwidth

·        Maximum extended transmission distance via a single Cat5e/6 cable:

o   394ft / 120 meters for 4K signal

o   492ft / 150 meters for 1080P signal

·        Supports one HDMI loop output on the Transmitter

·        De-embeds audio to analog stereo output on Receiver

·        Features bi-directional IR, RS-232 and CEC pass-through

·        Supports HDR, HDR10+, Dolby Vision and HLG function

·        Supports PoC (Power over Cable) functionality

·        Compact design for easy and flexible installation

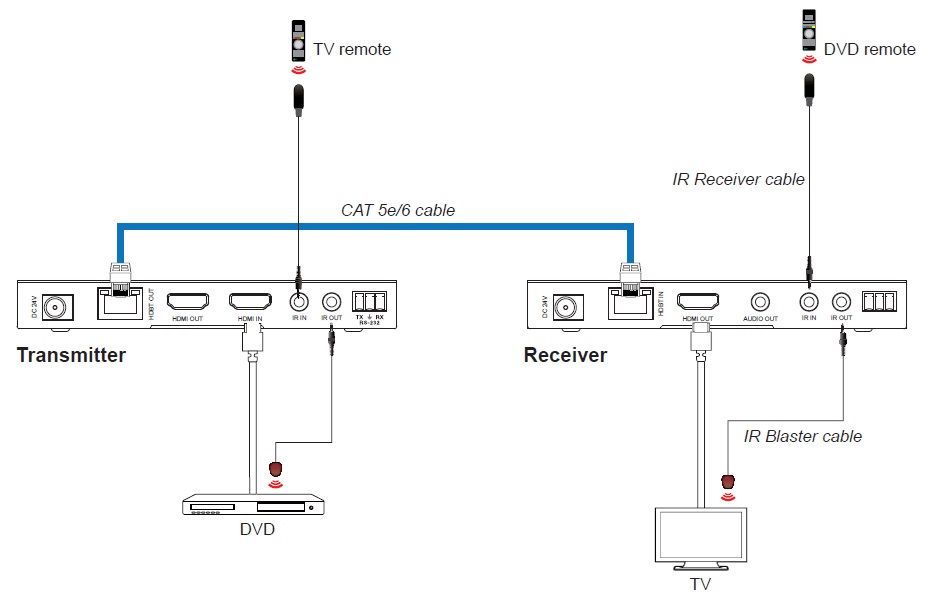

Connection Diagram


DSG-HDMI-460LR(图1)
