DSG-HDMI-460SMF
This HDMI Video Extender can extend HDMI signals up to 10 Km (33,000 feet) over a single-mode fiber cable. It supports video resolutions up to 4K@60Hz 4:4:4. The Transmitter supports local video loop output, audio embedding, and EDID management functions. The Receiver supports audio extraction. Additionally, the Extender supports bidirectional IR control and RS-232 signal pass-through. This allows you to easily control the display device from the signal source side or control the signal source device from the display side when using this Extender.
Application Example
 |
· HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
· Supports 18Gbps video bandwidth
· Supports video resolutions up to 4K@60Hz 4:4:4
· HDMI audio formats: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
· Supports 3D and HDR format video, does not support CEC control
· Transmission distance up to 33000 feet/10 km using SFP+ Single LC optical transceiver (over single-mode fiber cable). It is possible to use multi-mode fiber with the SFP module but the distance cannot be guaranteed.
· Supports bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control
· Transmitter supports local video loop-out (sharing local HD video and audio) and audio embedding functionality
· Receiver supports audio extracting output functionality
· Compact design for easy and flexible installation

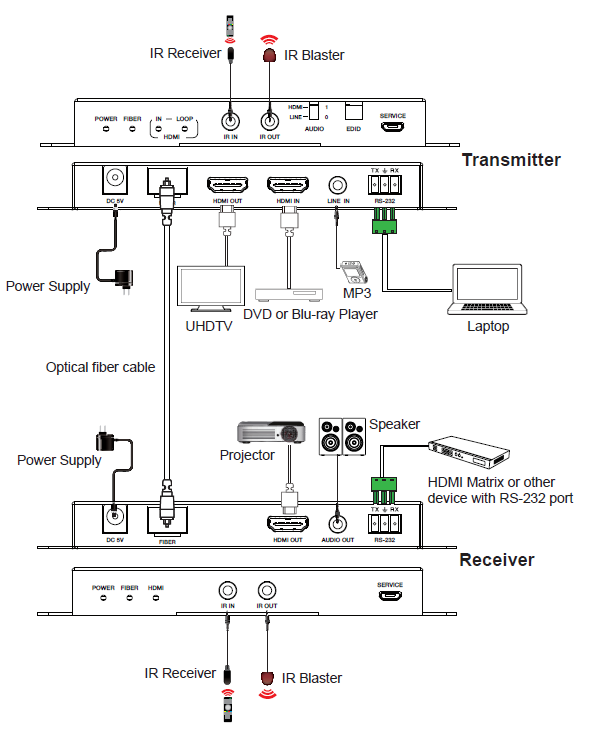

Connection Diagram
 |
