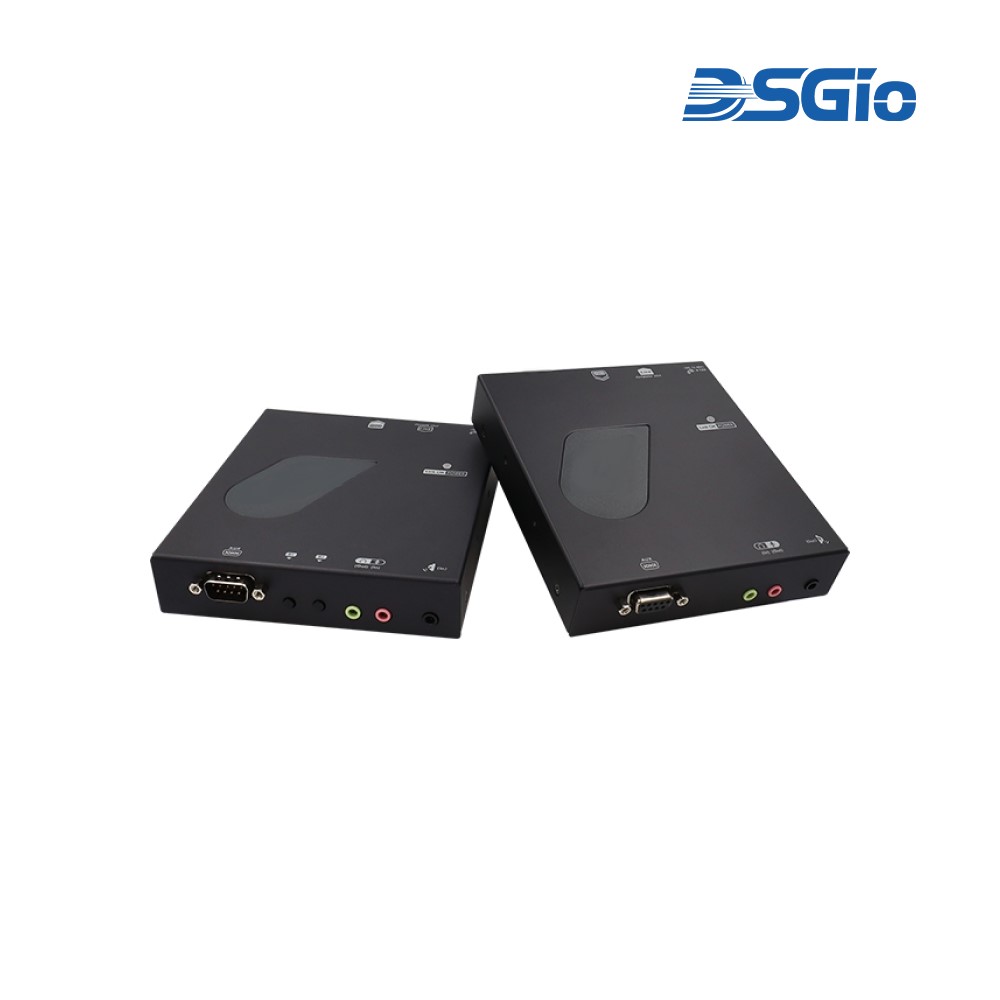

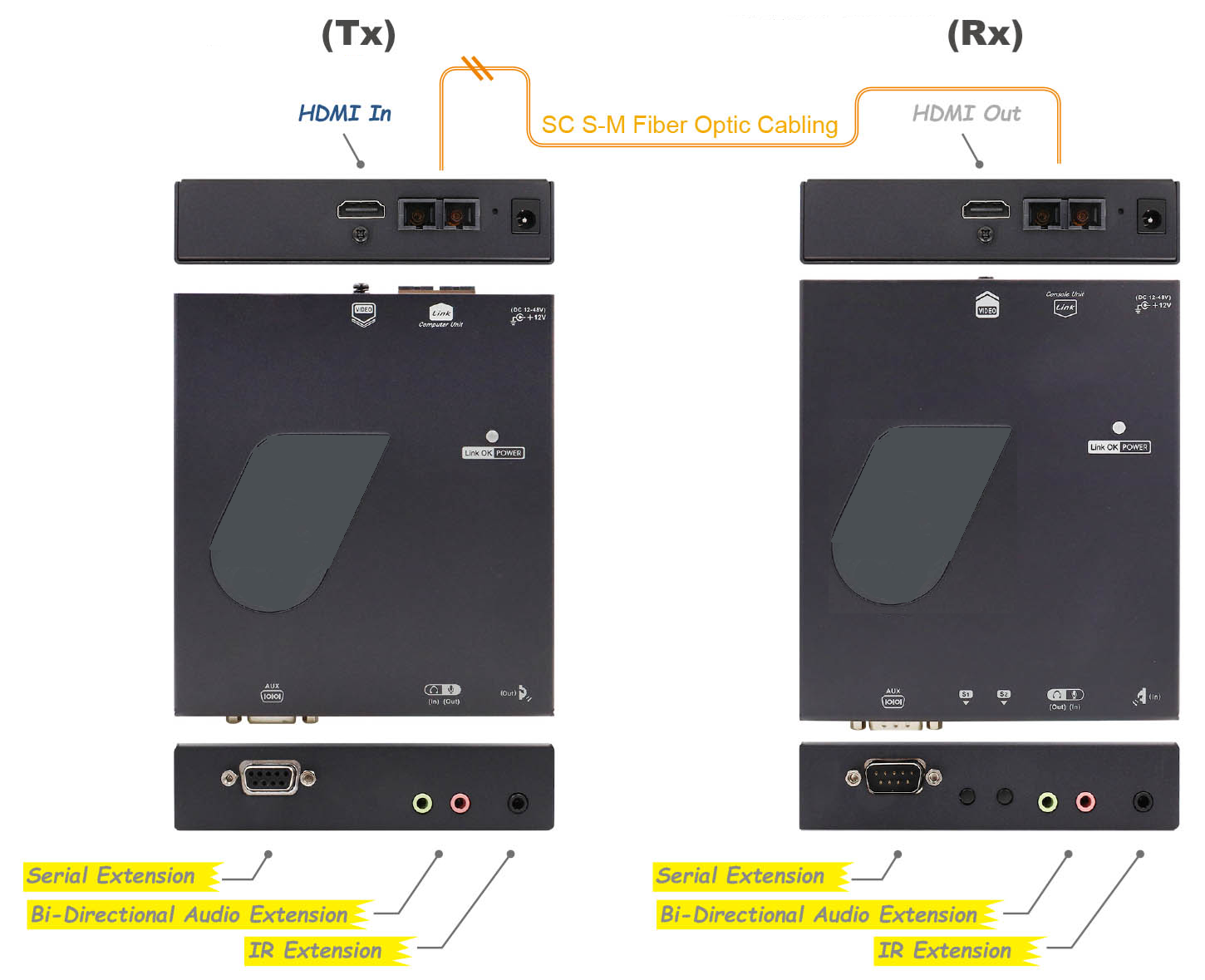

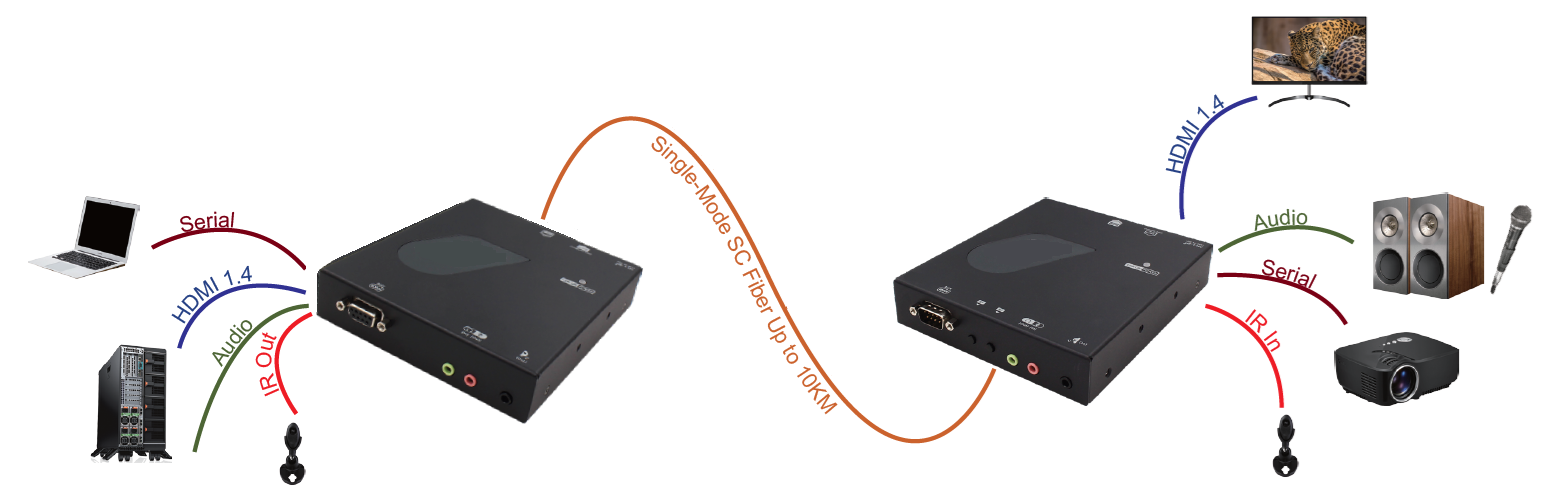

The VEX-H14F-10KSM, HDMI Video Extender, with Fiber Optic consists of a Transmitter (Host) and a Receiver (Device) unit, allowing you to extend 4K30 HDMI/Audio/IR/RS-232 signals over SC Single-Mode Fiber Optic cabling. It transmits 4K HDMI video up to 10 Km (32,800 feet) through a single SC Duplex Fiber Link Port and via Single-Mode fiber cable in a point-to-point configuration. The Fiber Video Extender supports popular signal resolutions up to 4K at 30Hz with 4:4:4 color sampling and is ideal for the most demanding applications.

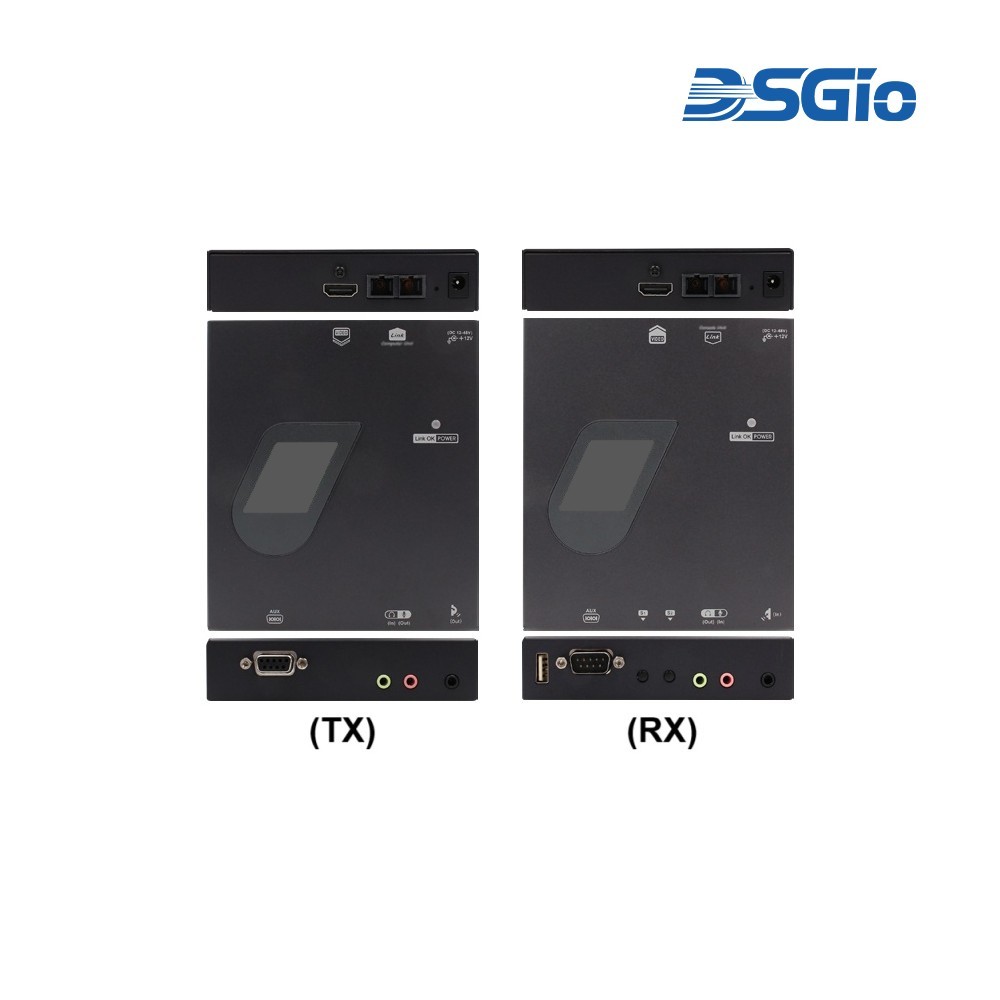

Comprising a compact Transmitter and Receiver pair, the HDMI Video Extender with Fiber Optic can be installed in minutes and requires no special programming. Using fiber optic cable offers several advantages over traditional copper-based extension methods, including thinner and lighter cables, immunity to RF and magnetic interference, and much longer extension distances up to 10 Km. It is particularly well-suited for electronically “noisy” environments such as factory shop floors or medical applications.

2-Way Audio with Unique Audio Embedding/De-Embedding Function

The bi-directional audio extension function allows the Extender Transmitter unit to independently transmit 2-way audio signals to the Receiver unit, and vice versa. The audio embedding/extracting function enables the transmission of audio signals from the Transmitter unit to the Receiver unit. It can embed audio from a 3.5-mm source into an HDMI signal or extract HDMI audio to a 3.5-mm stereo audio output. This feature provides an additional audio transmission channel, which is particularly beneficial for content creators in video post-production or audio broadcasting.

Economic Solution for Aviation and Marine Applications Supporting 2048 x 2048 Resolution

The HDMI Video Extender with Fiber Optic supports a unique resolution of 2048 x 2048, ideal for air traffic control and marine radar applications. Instead of purchasing an expensive 2048 x 2048 radar display, users can use a standard monitor and place the Fiber Extender between the monitor and the video source to accurately display the 2048 x 2048 resolution.

The Fiber Video Extender, equipped with speaker and microphone audio functions, offers comprehensive management of EDID (Extended Display Identification Data). This ensures that the computer displays the optimal resolution and format without compatibility issues. The serial extension function allows users to control RS-232 devices remotely, including projector, central control system, POS system, AV switcher, etc. A simple OSD menu enables users to configure the baud rate, with options ranging from 1200 to 115200 bps.

Compatible with Windows, Linux, Chrome OS, and macOS, the Extender is perfect for data centers, offices, control rooms, airports, server rooms, and factory applications.
