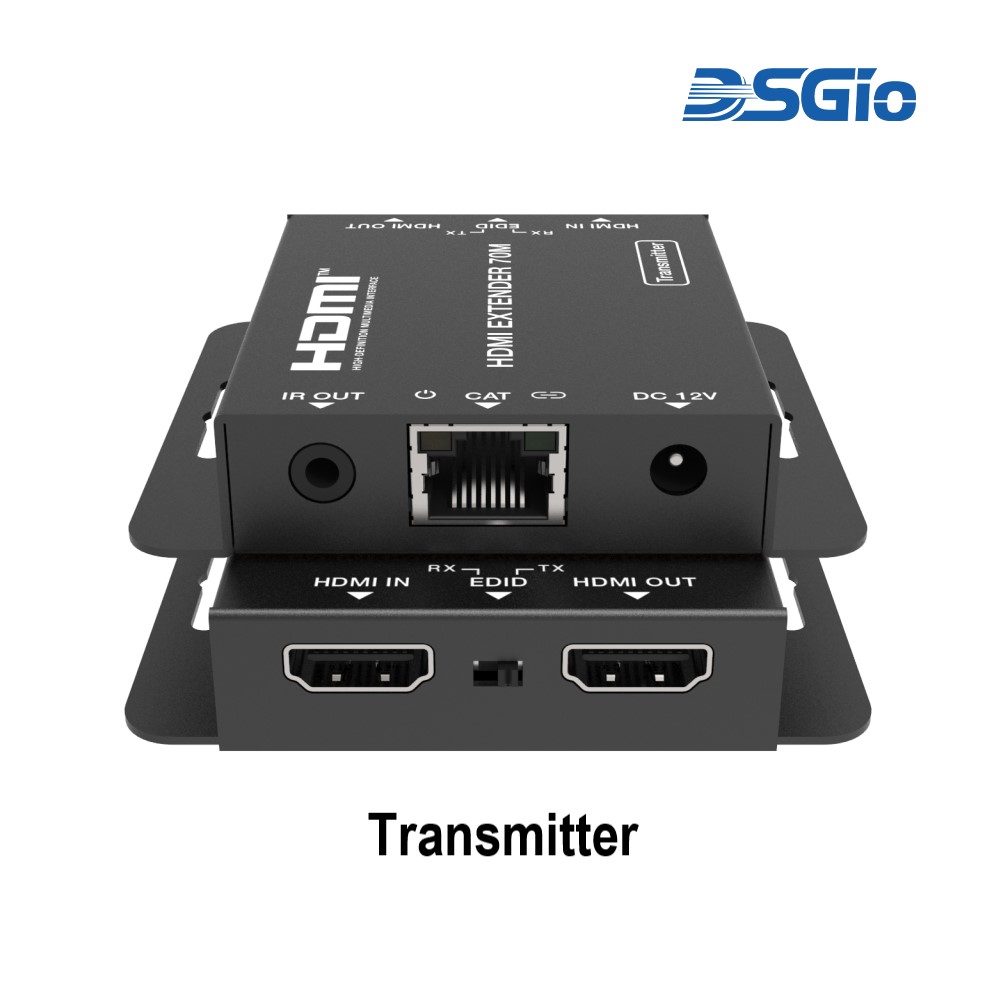

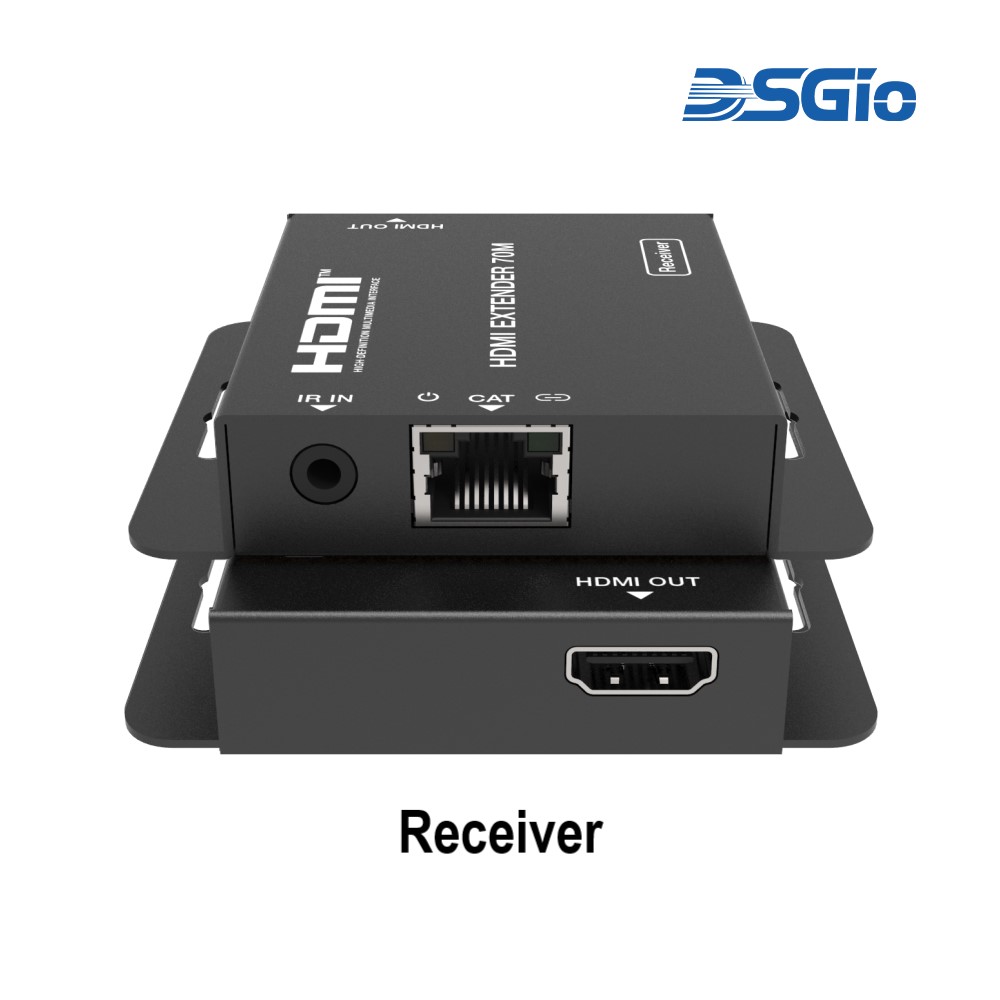

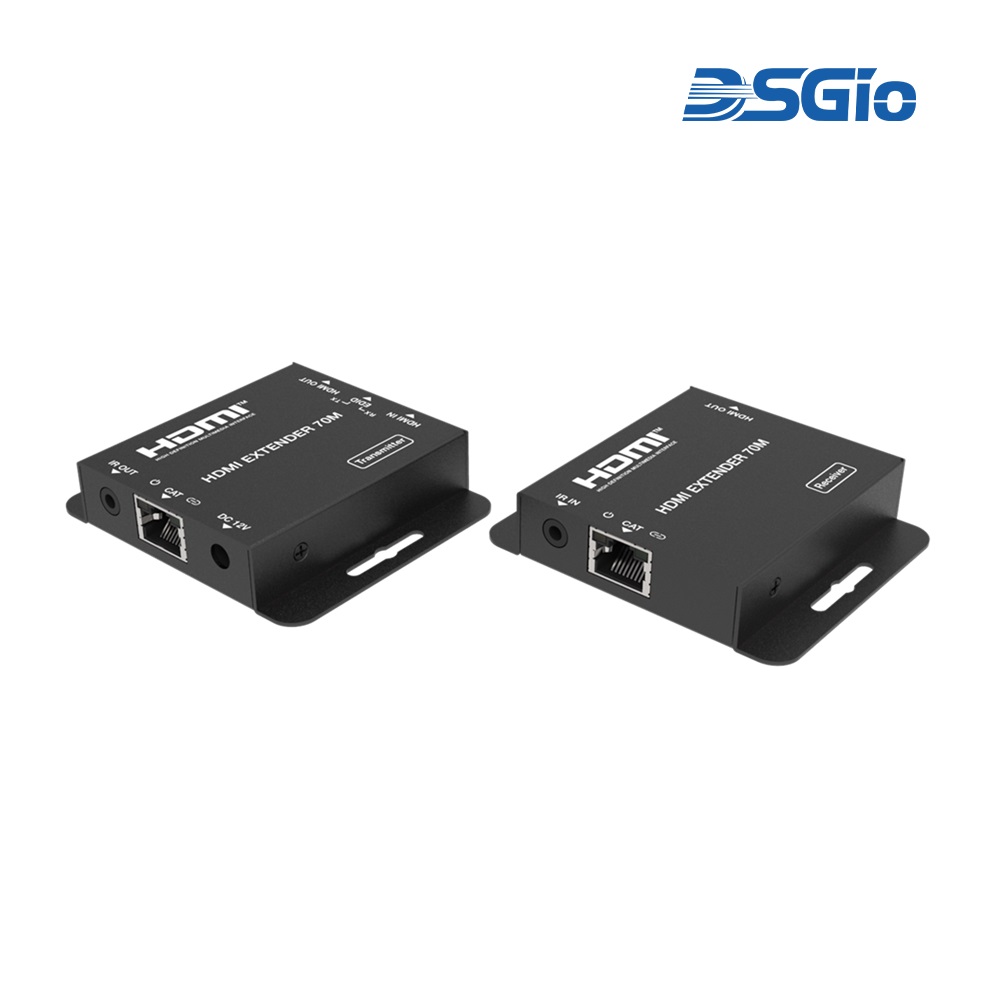

DSG-HDMI-430C
This HDMI Video Extender can extend high-definition video/audio signal and IR control signals up to 70m (230 feet) for 1080p resolution, and 40m (131 feet) for 4K30 resolution via a single CAT6 cable. It can achieve zero-delay, uncompressed long-distance transmission between the Transmitter and Receiver. This Extender, with HDMI loop output can be cascaded to the next Extender, supporting resolutions up to 4K@30Hz. It supports EDID copy function (you can choose local or remote EDID) and audio formats up to PCM7.1, Dolby True HD, and DTS HD. This product can be widely used in multimedia conference halls, TV teaching, and large-screen displays.
Application Example
· HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
· Supports video resolutions up to 4K@30Hz YUV 4:4:4
· Maximum transmission distance via a single CAT6/5E cable:
o CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
o CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
· Supports copying EDID from Receiver display or loop-out display
· Allows for cascading via additional HDMI loop-out port
· Supports one-way PoC functionality (from Transmitter to Receiver)
· One-way IR signal transmission
· Compact design for easy and flexible installation

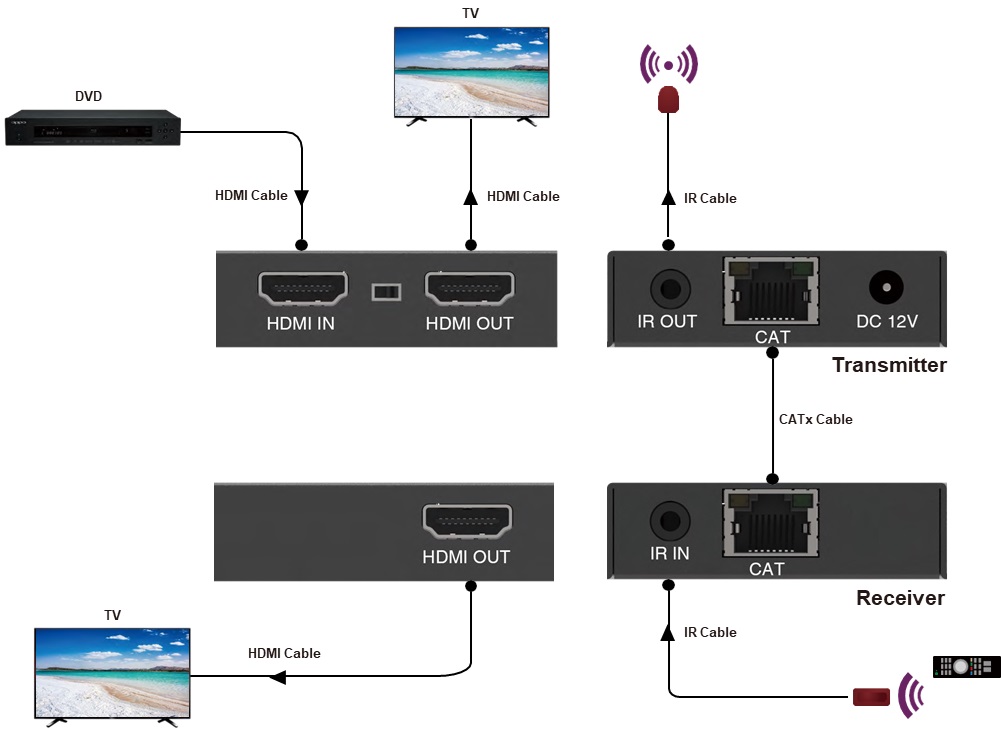

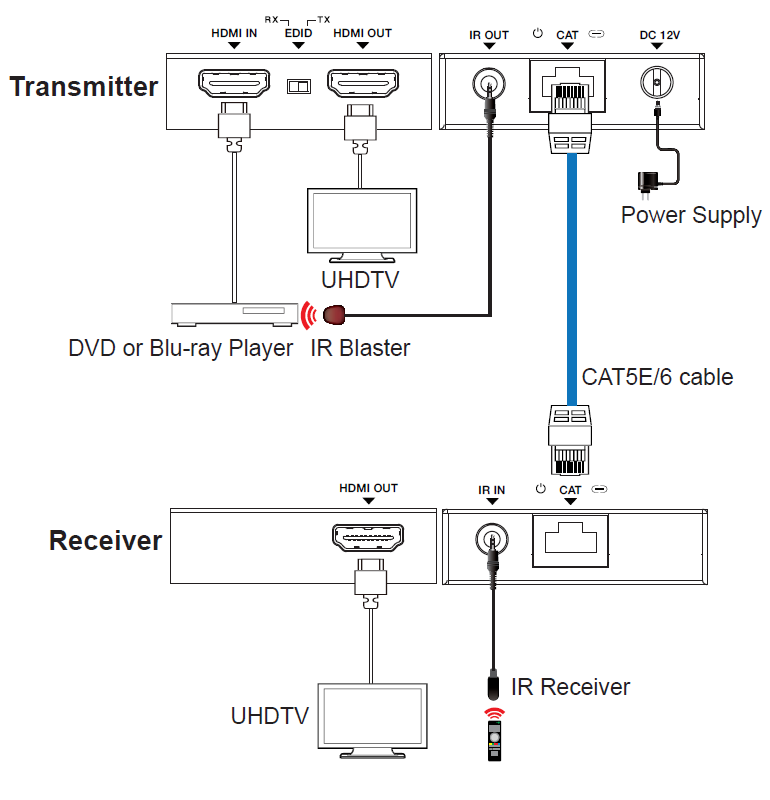

Connection Diagram
